Removal [09/2017 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE STEERING WHEEL ASSEMBLY

    Refer to REMOVAL [09/2017 - ]

  2. REMOVE CRUISE CONTROL MAIN SWITCH

    Refer to PROCEDURE - Step 2

  3. REMOVE STEERING PAD SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 3

  4. REMOVE SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY)
    1. Disengage the guide to disconnect the No. 1 switch wire from the steering wheel assembly.
      GTY640855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the No. 1 switch wire connector.
    3. Remove the 4 screws, and disconnect the 2 shift paddle switches (transmission shift switch assemblies) from the steering wheel assembly.
      GTY640861Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

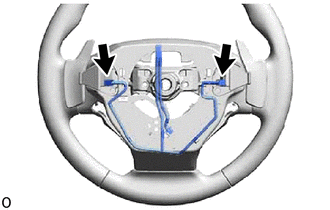

    4. Disconnect the 2 shift paddle switch (transmission shift switch assembly) connectors to remove the 2 shift paddle switches (transmission shift switch assemblies) from the No. 1 switch wire.
      GTY836310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disengage the 6 guides to remove the 2 shift paddle switches (transmission shift switch assemblies) with No. 1 switch wire from the steering wheel assembly.
      GTY677574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
