Removal [09/2017 - ]: Procedure

  1. REMOVE HORN BUTTON ASSEMBLY

    Refer to REMOVAL [10/2014 - 05/2019] , or refer to REMOVAL [05/2019 - 07/2020] , or refer to REMOVAL [07/2020 - ]

  2. REMOVE CRUISE CONTROL MAIN SWITCH

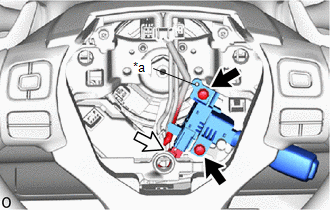

    1. Remove the 2 screws.
      GTY813135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Guide
    2. Detach the guide.
    3. Disconnect the connector and remove the cruise control main switch.
