Replacement [10/2014 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE FRONT DRIVE SHAFT ASSEMBLY

    Refer to REMOVAL [10/2014 - 09/2016] , or refer to REMOVAL [09/2016 - ]

  2. REMOVE DRIVE SHAFT BEARING BRACKET

    Refer to PROCEDURE - Step 84 [10/2014 - 09/2016] , or refer to PROCEDURE - Step 84 [09/2016 - 05/2019] , or refer to PROCEDURE - Step 84 [05/2019 - ]

  3. REMOVE FRONT DRIVE SHAFT OIL SEAL LH

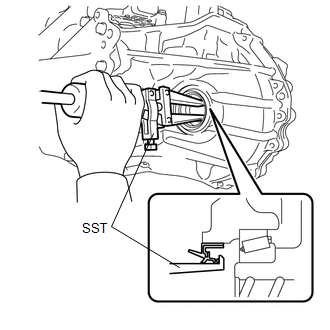

    1. Using SST, remove the front drive shaft oil seal LH from the automatic transaxle assembly.
      GTY518260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09308-00010
      NOTE:

      Be careful not to damage the transaxle case sub-assembly.

  4. REMOVE FRONT DRIVE SHAFT OIL SEAL RH

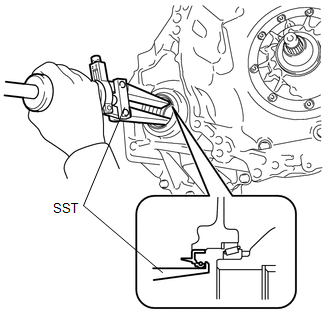

    1. Using SST, remove the front drive shaft oil seal RH from the automatic transaxle assembly.
      GTY505810Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09308-00010
      NOTE:

      Be careful not to damage the transaxle housing.

  5. INSTALL FRONT DRIVE SHAFT OIL SEAL LH

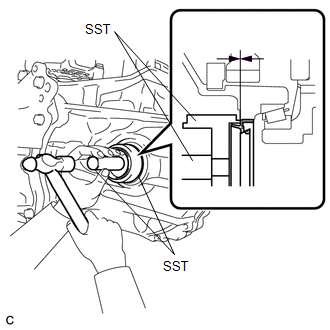

    1. Using SST and a hammer, install a new front drive shaft oil seal LH to the automatic transaxle assembly.
      GTY516554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09316-10010
      • SST: 09950-70010
        1. 09951-07100

      Standard depth

      -0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

      NOTE:
      • Make sure that the front drive shaft oil seal LH is installed in the correct direction.
      • Do not damage the front drive shaft oil seal LH lip.
    2. Coat the lip of the front drive shaft oil seal LH with MP grease.
  6. INSTALL FRONT DRIVE SHAFT OIL SEAL RH

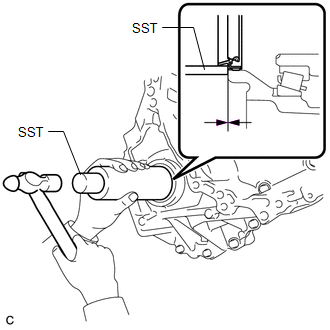

    1. Using SST and a hammer, install a new front drive shaft oil seal RH to the automatic transaxle assembly.
      GTY499533Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09316-60011
        1. 09316-00011

      Standard depth

      -0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

      NOTE:
      • Make sure that the front drive shaft oil seal RH is installed in the correct direction.
      • Do not damage the front drive shaft oil seal RH lip.
    2. Coat the lip of the front drive shaft oil seal RH with MP grease.
  7. INSTALL DRIVE SHAFT BEARING BRACKET

    Refer to PROCEDURE - Step 1 [10/2014 - 05/2019] , or refer to PROCEDURE - Step 1 [05/2019 - ]

  8. INSTALL FRONT DRIVE SHAFT ASSEMBLY

    Refer to INSTALLATION [10/2014 - 09/2016] , or refer to INSTALLATION [09/2016 - ]
