Installation [10/2014 - ]: Procedure

1. Coat a new O-ring with ATF and install it to the ATF temperature sensor assembly.

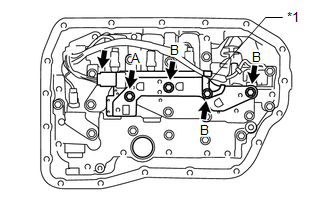

2. Coat the 4 bolts with ATF.
3. Install the ATF temperature sensor assembly and clamp to the transmission valve body assembly with the 4 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1

   Clamp

   Torque: 10.8 N.m (110 kgf/cm, 8 ft.lbf)

   Bolt Length

   Bolt	Length (mm (in.))
   A	25 mm (0.984)
   B	85 mm (3.346)

4. Connect the connector.

1. Coat a new O-ring with ATF and install it to the valve body oil strainer assembly.
   NOTE:

   Ensure that the O-ring is not twisted or pinched.

2. Install the valve body oil strainer assembly to the transmission valve body assembly with the 2 bolts.

   Torque: 10.8 N.m (110 kgf/cm, 8 ft.lbf)

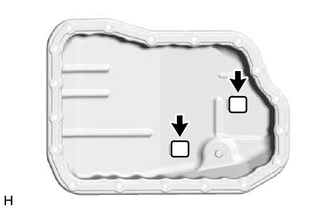

1. Install the 2 transmission oil cleaner magnets to the automatic transaxle oil pan sub-assembly as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Clean the contact surfaces of the automatic transaxle assembly and automatic transaxle oil pan sub-assembly.
3. Clean and degrease the bolt and the bolt hole in the automatic transaxle assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Install a new automatic transaxle oil pan gasket to the automatic transaxle oil pan sub-assembly.

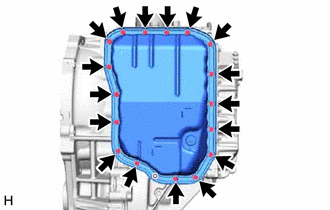

5. Install the automatic transaxle oil pan sub-assembly with automatic transaxle oil pan gasket to the transaxle case with the 17 bolts.

   Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

   NOTE:

   Completely remove any oil or grease from the contact surfaces of the transaxle case and automatic transaxle oil pan sub-assembly with automatic transaxle oil pan gasket before installation.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

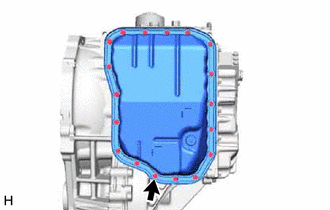

6. Apply adhesive to the bolt.

   Adhesive

   Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent

7. Install the bolt.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 7.0 N.m (71 kgf/cm, 62 in.lbf)

   NOTE:

   In order to ensure proper sealing of the automatic transaxle oil pan sub-assembly bolt, apply adhesive to the bolt and install it within 10 minutes of adhesive application.

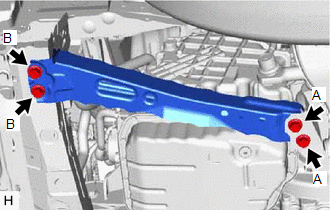

1. Install the front suspension member reinforcement LH with the 4 bolts.

   Torque: 99 N.m (1010 kgf/cm, 73 ft.lbf)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Bolt Length

   Bolt	Length (mm (in.))
   A	25 mm (0.984)
   B	95 mm (3.740)

See step  5 [10/2014 - 05/2019], or see step  5 [05/2019 - 07/2020], or see step  5 [07/2020 - ]

Refer to ADJUSTMENT [10/2014 - 05/2019] , or refer to ADJUSTMENT [05/2019 - 07/2020] , or refer to ADJUSTMENT [07/2020 - ]

Refer to PROCEDURE - Step 96 [10/2014 - 05/2019] , or refer to PROCEDURE - Step 97 [05/2019 - ]

Refer to PROCEDURE - Step 99 [10/2014 - 05/2019] , or refer to PROCEDURE - Step 100 [05/2019 - ]
