Installation [10/2014 - 09/2015]: Procedure

  1. TEMPORARILY INSTALL INTERCOOLER ASSEMBLY (for Type A)
    NOTE:

    If temporary installation is not performed, parts may not be correctly positioned. As a result, connecting parts may not be airtight.

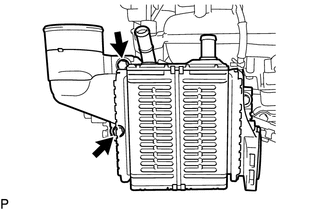

    1. Temporarily install the intercooler assembly to the intercooler support bracket sub-assembly by hand with the 2 bolts in the position shown in the illustration.
      GTY516882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 3 gaskets to the intake manifold, intercooler assembly and No. 2 air tube.

      HINT:

      Check that the gasket is securely fitted into the installation groove.

    3. Install the throttle body with motor assembly and No. 2 air tube to the intake manifold with the 4 bolts.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

    4. Temporarily install the No. 2 air tube with the 4 bolts, and then tighten them to the specified torque in the order shown in the illustration.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

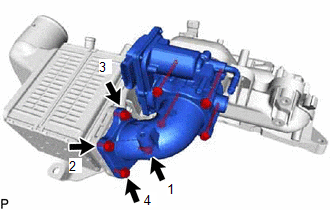

      Fig 1: No. 2 Air Tube Tightening Sequence
      GTY520234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Tighten the 2 bolts of the intercooler assembly.

      Torque: 9.3 N*m (95 kgf*cm, 82 in.*lbf)

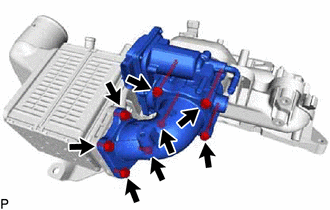

    6. Remove the 8 bolts, No. 2 air tube and throttle body with motor assembly.
      GTY519522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not loosen the installation bolts of the intercooler assembly.

    7. Remove the 3 gaskets from the intake manifold, intercooler assembly and No. 2 air tube.
  2. INSTALL INTERCOOLER ASSEMBLY
    1. Install a new gasket to the intercooler assembly.

      HINT:

      Check that the gasket is securely fitted into the installation groove.

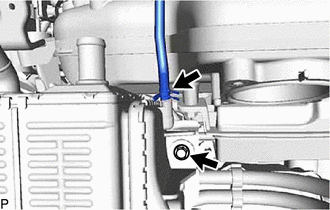

    2. for Type A:

      Install the intercooler assembly to the intercooler support bracket sub-assembly with the bolt in the position shown in the illustration.

      Torque: 9.3 N*m (95 kgf*cm, 82 in.*lbf)

      GTY521761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

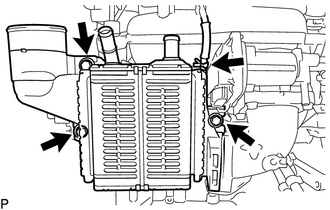

    3. for Type B:

      Install the intercooler assembly to the intercooler support bracket sub-assembly with the 3 bolts.

      Torque: 9.3 N*m (95 kgf*cm, 82 in.*lbf)

      GTY509699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Connect the No. 1 vacuum transmitting hose to the intercooler assembly with the hose clip.
    5. Connect the No. 8 water by-pass hose and No. 9 water by-pass hose to the intercooler assembly with the 2 clamps.

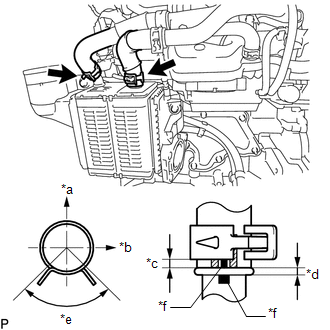

      HINT:

      Install the water by-pass hoses and hose clamps as shown in the illustration.

      GTY513792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front of Vehicle
      *b Right Side of Vehicle
      *c 2.0 to 7.0 mm (0.0787 to 0.275 in.)
      *d Insert Until Hose Contacts Stopper
      *e Hose Clamp Claw Range
      *f Paint Mark
    6. for Type B:

      Temporarily connect the No. 2 air tube to the intercooler assembly with the 4 bolts in the sequence shown in the illustration, and then tighten the bolts at the specified torque.

      Fig 2: No. 2 Air Tube To Intercooler Assembly Tightening Sequence
      GTY520234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  3. INSTALL THROTTLE BODY WITH MOTOR ASSEMBLY (for Type A)

    Refer to PROCEDURE - Step 1 [10/2014 - ]

  4. INSTALL PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY (for AWD)

    Refer to INSTALLATION [10/2014 - ]

  5. INSTALL FRONT FLOOR COVER CENTER LH

    Refer to PROCEDURE - Step 19 [10/2014 - 05/2019]

  6. INSTALL NO. 1 AIR TUBE
    1. Install the No. 1 air tube to the cylinder head sub-assembly with the 2 bolts.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

    2. Connect the No. 2 air hose to the intercooler assembly and tighten the hose clamp to secure the hose.

      Torque: 6.3 N*m (64 kgf*cm, 56 in.*lbf)

    3. Connect the No. 1 air hose to the intake air resonator and tighten the hose clamp to secure the hose.

      Torque: 6.3 N*m (64 kgf*cm, 56 in.*lbf)

    4. Connect the No. 3 PCV hose to the cylinder head cover sub-assembly with the clamp to secure the hose.
    5. Connect the No. 2 fuel vapor feed hose with the clamp.
    6. Connect the vacuum hose with the clamp.
  7. INSTALL INTAKE AIR CONNECTOR

    Refer to PROCEDURE - Step 10 [10/2014 - 09/2017]

  8. INSTALL AIR CLEANER CASE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 60 [10/2014 - 05/2019]

  9. INSTALL AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 61 [10/2014 - 05/2019]

  10. INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 11 [10/2014 - 09/2017]

  11. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 101 [10/2014 - 05/2019]

  12. ADD COOLANT (for Intercooler)

    See step  2

  13. ADD COOLANT

    Refer to PROCEDURE - Step 2 [10/2014 - ]

  14. INSPECT FOR COOLANT LEAK (for Intercooler)

    See step  1

  15. INSPECT FOR COOLANT LEAK

    Refer to PROCEDURE - Step 1 [10/2014 - ]

  16. INSTALL NO. 1 ENGINE UNDER COVER (except Sport Package)

    Refer to PROCEDURE - Step 98 [10/2014 - 05/2019]

  17. INSTALL NO. 1 ENGINE UNDER COVER ASSEMBLY (for Sport Package)

    Refer to PROCEDURE - Step 99 [10/2014 - 05/2019]
