Removal [10/2014 - 09/2016]: Procedure

  1. REMOVE FRONT WHEEL

    Refer to REMOVAL [10/2014 - ]

  2. REMOVE NO. 1 ENGINE UNDER COVER (except Sport Package)

    Refer to PROCEDURE - Step 7 [10/2014 - 09/2016]

  3. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY (for Sport Package)

    Refer to PROCEDURE - Step 6 [10/2014 - 09/2016]

  4. REMOVE REAR ENGINE UNDER COVER LH

    Refer to PROCEDURE - Step 9 [10/2014 - 09/2016]

  5. REMOVE REAR ENGINE UNDER COVER RH

    Refer to PROCEDURE - Step 8 [10/2014 - 09/2016]

  6. DRAIN AUTOMATIC TRANSAXLE FLUID
  7. DRAIN TRANSFER OIL (for AWD)

    Refer to PROCEDURE - Step 1 [10/2014 - ]

  8. REMOVE FRONT AXLE SHAFT NUT LH

    Refer to PROCEDURE - Step 2 [10/2014 - ]

  9. REMOVE FRONT AXLE SHAFT NUT RH

    HINT:

    Use the same procedure described for the LH side.

  10. DISCONNECT FRONT SPEED SENSOR LH (w/o AVS)
    1. Remove the clamp.

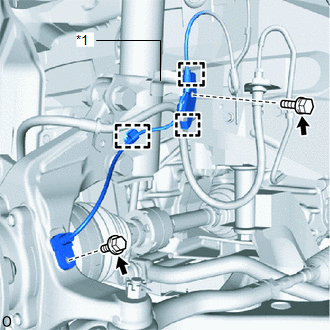

      GTY512614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Absorber Bracket
    2. Remove the bolt, 2 guides and sensor clamp from the absorber bracket.
    3. Disconnect the bolt and front speed sensor LH.
      NOTE:

      Prevent foreign matter from attaching to the front speed sensor tip.

  11. REMOVE FRONT SPEED SENSOR LH (w/ AVS)
    1. Remove the front speed sensor LH.

      (Refer to PROCEDURE - Step 2 [10/2014 - ] )

    2. Disconnect the skid control sensor wire LH.
      1. Remove the bolt, guide and sensor clamp.

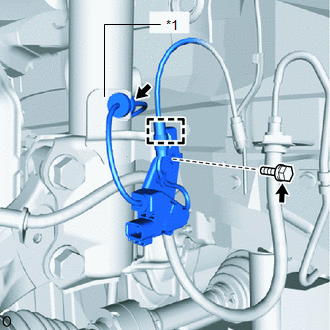

        GTY502145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *1 Absorber Bracket
      2. Remove the grommet from the absorber bracket.
  12. DISCONNECT FRONT SPEED SENSOR RH (w/o AVS)

    HINT:

    Use the same procedure described for the LH side.

  13. REMOVE FRONT SPEED SENSOR RH (w/ AVS)

    HINT:

    Use the same procedure described for the LH side.

  14. DISCONNECT FRONT STABILIZER LINK ASSEMBLY LH

    Refer to PROCEDURE - Step 6 [10/2014 - ]

  15. DISCONNECT FRONT STABILIZER LINK ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  16. DISCONNECT FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 9 [10/2014 - ]

  17. DISCONNECT FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  18. DISCONNECT FRONT AXLE ASSEMBLY LH
    1. Remove the bolt and detach the 2 guides.

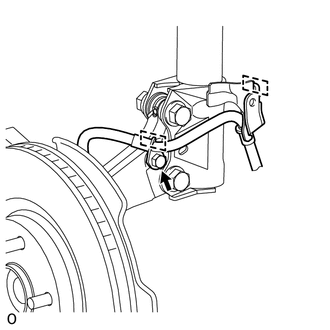

      GTY381559Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Put matchmarks on the front drive shaft assembly LH and front axle assembly LH.

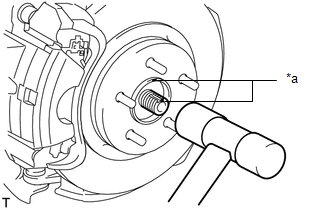

      GTY368238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark
    3. Using a plastic-faced hammer, disconnect the front drive shaft assembly LH from the front axle assembly LH.
      NOTE:
      • Do not damage the front axle outboard joint boot and drive shaft dust cover.
      • Do not excessively push out the front drive shaft assembly LH from the front axle assembly LH.
  19. DISCONNECT FRONT AXLE ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  20. REMOVE FRONT DRIVE SHAFT ASSEMBLY LH

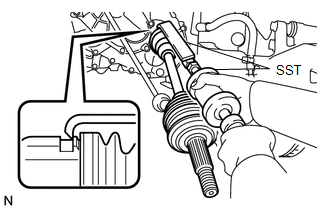

    1. GTY507712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Using SST, remove the front drive shaft assembly LH.

      • SST: 09520-01010
      • SST: 09520-24010
        1. 09520-32040
      NOTE:
      • Do not damage the front drive shaft oil seal LH, front axle inboard joint boot and front drive shaft dust cover LH.
      • Do not drop the front drive shaft assembly LH.
      • When carrying the front drive shaft assembly LH, hold it horizontally.

      HINT:

      Hook the SST claw at the position shown in the illustration to remove the front drive shaft assembly LH.

  21. REMOVE FRONT DRIVE SHAFT ASSEMBLY RH
    1. Disconnect the drive shaft bearing bracket hole snap ring from the drive shaft bearing bracket.

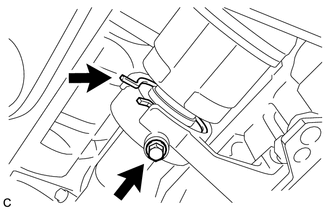

      GTY508142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and front drive shaft assembly RH from the drive shaft bearing bracket.
      NOTE:

      for 2WD:

      • Do not damage the front drive shaft oil seal RH, front axle inboard joint boot, front drive shaft dust cover RH and front drive shaft dust cover.
      • Do not drop the front drive shaft assembly RH.
      • When carrying the front drive shaft assembly RH, hold it horizontally.

      for AWD:

      • Do not damage the front drive shaft oil seal RH, transfer case oil seal RH, front axle inboard joint boot and front drive shaft dust cover RH.
      • Do not drop the front drive shaft assembly RH.
      • When carrying the front drive shaft assembly RH, hold it horizontally.

      HINT:

      If the spline connection is stiff, using a brass bar and hammer, lightly tap the inboard joint assembly to remove it.

    3. Remove the drive shaft bearing bracket hole snap ring from the front drive shaft assembly RH.
  22. REMOVE FRONT DRIVE SHAFT HOLE SNAP RING LH
    1. Using a screwdriver, remove the front drive shaft hole snap ring LH.
      GTY363502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not damage the spline of the front drive inboard joint assembly LH.
