Removal [10/2014 - ]: Procedure

Refer to PROCEDURE - Step 6 [10/2014 - 09/2016] , or refer to PROCEDURE - Step 6 [09/2016 - 05/2019] , or refer to PROCEDURE - Step 6 [05/2019 - ]

Refer to PROCEDURE - Step 9 [10/2014 - 09/2016] , or refer to PROCEDURE - Step 9 [09/2016 - 05/2019] , or refer to PROCEDURE - Step 9 [05/2019 - ]

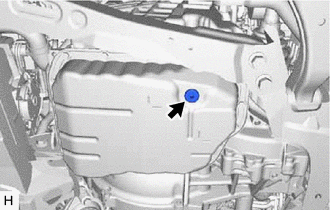

1. Using a 6 mm hexagon socket wrench, remove the overflow plug and gasket from the automatic transaxle oil pan sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

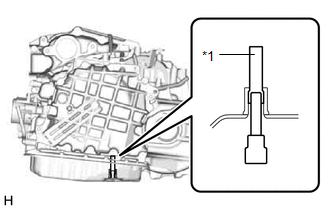

2. Using a 6 mm socket hexagon wrench, remove the No. 1 transmission oil filler tube from the automatic transaxle assembly and drain the automatic transaxle fluid.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	No. 1 Transmission Oil Filler Tube

3. Using a 6 mm socket hexagon wrench, install the No. 1 transmission oil filler tube to the automatic transaxle assembly.

   Torque: 1.7 N.m (17 kgf/cm, 15 in.lbf)

4. Using a 6 mm hexagon socket wrench, temporarily install the gasket and overflow plug to the automatic transaxle oil pan sub-assembly.

   HINT:

   Reuse the old gasket as the overflow plug will be removed again to adjust the fluid level.

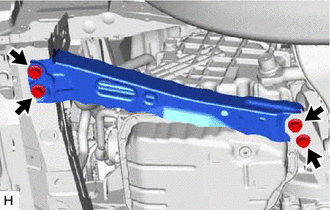

1. Remove the 4 bolts and front suspension member reinforcement LH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

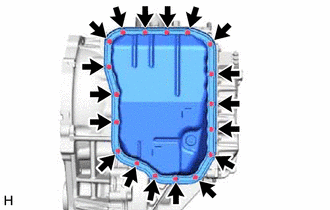

1. Remove the 18 bolts and automatic transaxle oil pan sub-assembly from the automatic transaxle assembly.
   NOTE:

   Some fluid will remain in the automatic transaxle oil pan sub-assembly. Remove all the bolts, and carefully remove the automatic transaxle oil pan sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the gasket from the automatic transaxle oil pan sub-assembly.
3. Remove the 2 transmission oil cleaner magnets from the automatic transaxle oil pan sub-assembly.
4. Examine particles in the automatic transaxle oil pan sub-assembly.
   1. Collect any steel chips with the removed transmission oil cleaner magnets. Look carefully at the chips and particles in the automatic transaxle oil pan sub-assembly and on the transmission oil cleaner magnets to see the type of wear which might be found in the automatic transaxle assembly.

      Result

      Steel (magnetic)

      Bearing, gear and plate wear

      Brass (non-magnetic)

      Bushing wear

1. Remove the 2 bolts and valve body oil strainer assembly from the transmission valve body assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the O-ring from the valve body oil strainer assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1

   O-ring

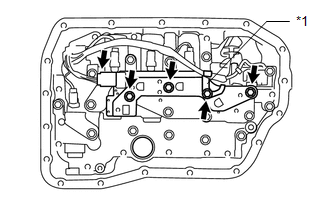

1. Disconnect the connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1

   Clamp

2. Remove the 4 bolts, ATF temperature sensor assembly and clamp from the transmission valve body assembly.
3. Remove the O-ring from the ATF temperature sensor assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1

   O-ring
