Removal [10/2014 - 09/2017]: Procedure

Refer to PROCEDURE - Step 5 [10/2014 - 09/2015] , or refer to PROCEDURE - Step 5 [09/2015 - 09/2017]

Refer to PROCEDURE - Step 6 [10/2014 - 09/2015] , or refer to PROCEDURE - Step 6 [09/2015 - 09/2017]

1. Lift the front end of the rear seat cushion assembly as shown in the illustration and detach the 2 hooks from the rear seat cushion lock hook section.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Rear seat cushion lock hook section
   *b	Hook section at rear of rear seat cushion frame

   NOTE:

   The rear seat cushion frame will deform if lifted at a position far from the rear seat cushion lock hook.

2. Detach the 2 hooks of the rear of the rear seat cushion frame.
3. Pass the rear seat inner with center belt assembly RH through the rubber band of the rear seat cushion assembly.
4. Remove the bench type rear seat cushion assembly.
   NOTE:

   Be careful not to damage the vehicle body.

Refer to PROCEDURE - Step 22 [10/2014 - 09/2015] , or refer to PROCEDURE - Step 22 [09/2015 - 09/2017]

Refer to PROCEDURE - Step 23 [10/2014 - 09/2015] , or refer to PROCEDURE - Step 23 [09/2015 - 09/2017]

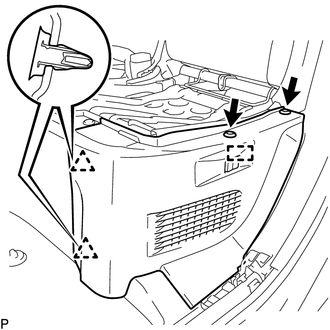

1. Remove the 2 clips.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Detach the 2 clips and guide to remove the No. 3 battery service cover board.
3. Detach the clamp to disconnect the wire harness.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Disconnect the connector.

HINT:

Use the same procedure described for the No. 3 battery service cover board.

See step  13

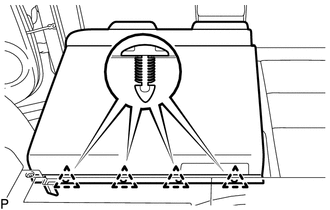

1. Operate the rear power seat switch to fold down the rear seatback assembly LH.
2. Using a clip remover, detach the 4 clips.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Operate the rear power seat switch to move the rear seatback assembly LH to the upright position.
4. Disconnect the connector.

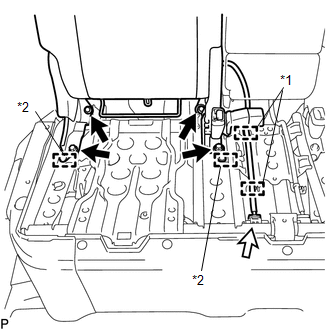

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Clamp
   *2	Guide

5. Detach the 2 clamps to disconnect the wire harness.
6. Remove the 4 bolts.
7. Detach the 2 guides to remove the rear seatback assembly LH.
   NOTE:

   Be careful not to damage the vehicle body.

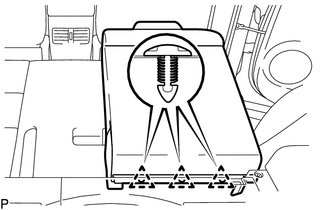

1. Operate the rear power seat switch to fold down the rear seatback assembly RH.
2. Using a clip remover, detach the 3 clips.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Operate the rear power seat switch to move the rear seatback assembly RH to the upright position.
4. Disconnect the connector.

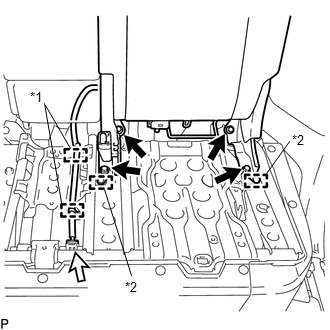

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Clamp
   *2	Guide

5. Detach the 2 clamps to disconnect the wire harness.
6. Remove the 4 bolts.
7. Detach the 2 guides to remove the rear seatback assembly RH.
   NOTE:

   Be careful not to damage the vehicle body.

1. Remove the 5 clips.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Detach the 2 guides to remove the battery service cover board.

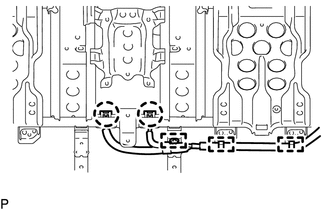

1. Detach the 2 claws and 3 clamps to disconnect the wire harness.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the 10 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Detach the 2 guides to remove the No. 1 seat leg assembly.

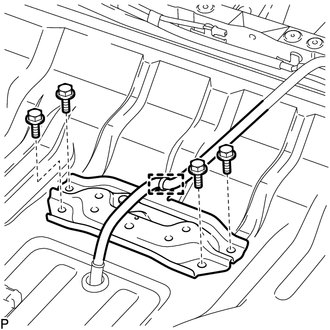

1. Partially remove the floor carpet.
2. Detach the clamp.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Remove the 4 bolts and seat leg bracket.
