Installation [10/2020 - 11/2021]: Procedure

1. Check the identification mark to determine the installation side.
   NOTE:

   The rear disc needs to be installed to the correct side of the vehicle. There is a "L", indicating the disc for the left wheel, or a "R", indicating the disc for the right wheel, engraved on the disc in the position shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. When reusing the rear disc LH:

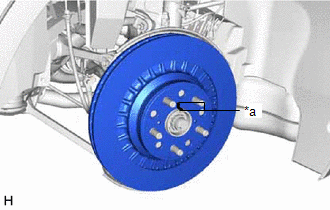

   1. Align the matchmarks of the rear disc and rear axle hub and bearing assembly LH, and install the rear disc LH.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *a

      Matchmark

3. When replacing the rear disc LH:
   1. Inspect the rear disc runout.

      See step  5

   2. Select the installation position where the rear disc has minimal runout, and install the rear disc LH.
4. Temporarily install the 5 hub nuts.

1. Install the parking brake shoe adjusting hole plug to rear disc LH.

1. Install the rear disc brake cylinder assembly LH to the rear axle carrier sub-assembly LH with the 2 bolts.

   Torque: 151 N.m (1540 kgf/cm, 111 ft.lbf)

1. Connect the rear flexible hose to the rear disc brake cylinder assembly LH with a new union bolt and a new gasket.

   Torque: 39.2 N.m (400 kgf/cm, 29 ft.lbf)

   NOTE:

   Install the rear flexible hose lock securely into the lock hole in the rear disc brake cylinder assembly LH.

Refer to PROCEDURE - Step 1

Refer to PROCEDURE - Step 2

Refer to PROCEDURE - Step 5

1. Connect the reservoir level switch connector.
2. Connect the cable to the negative (-) auxiliary battery terminal.

   Refer to INSTALLATION [10/2020 - 10/2023]

3. Perform the following procedure if air bleeding is not necessary:
   1. Turn the ignition switch to ON (READY).
   2. Depress the brake pedal and release it.
   3. Clear the DTCs.

      -

Refer to BLEEDING [10/2020 - 10/2023]

-

Refer to ADJUSTMENT [10/2020 - 11/2021]

Refer to INSTALLATION [10/2017 - 10/2023]

• w/ Advanced Park:

  -

• w/o Advanced Park:

  Refer to INITIALIZATION [10/2020 - 10/2023]
