Removal [09/2018 - 10/2020]: Procedure

PRECAUTION
NOTE:
After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

Refer to PRECAUTION [12/2017 - 10/2020]
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [09/2018 - 10/2020]
REMOVE FAN AND GENERATOR V BELT
Refer to REMOVAL [12/2017 - ]
DISCONNECT NO. 3 ENGINE WIRE
Refer to PROCEDURE - Step 59

REMOVE AIR CLEANER SUPPORT BRACKET ASSEMBLY

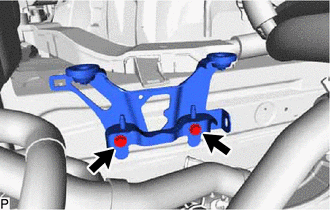

Remove the 2 bolts and air cleaner support bracket assembly.

GTY825538

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE GENERATOR ASSEMBLY

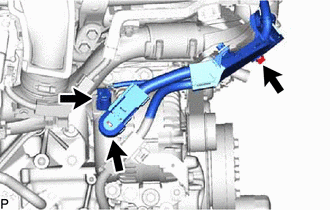

Remove the bolt and disconnect the engine wire.

GTY825544

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the terminal cap.
Detach the clamp.
Remove the nut and disconnect the engine wire from terminal B.
Disconnect the generator assembly connector.

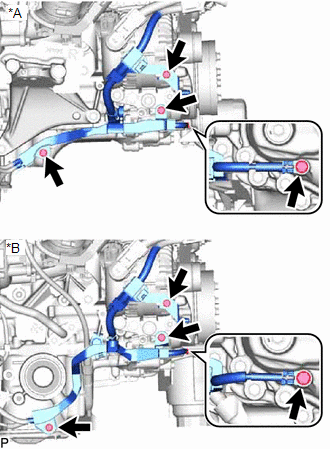

Remove the 4 bolts and disconnect the wire harness.

GTY820399

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for 2WD
*B	for AWD

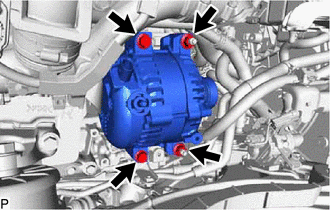

Remove the 2 bolt and 2 nuts.

GTY825543

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using an E8 "TORX" socket wrench, remove the 2 stud bolts and generator assembly.

GTY838344

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

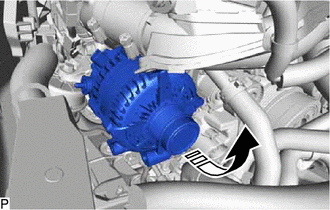

Remove the generator assembly as shown in the illustration.

GTY789307

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Vehicle front side
