Installation [10/2020 - 10/2023]: Procedure

  1. INSTALL CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
    NOTE:

    Do not reuse dropped or damaged parts.

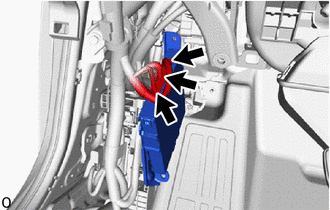

    1. Connect the 3 connectors.
      GTY791583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the certification ECU (smart key ECU assembly) with the 2 nuts.
      GTY791584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 1

  3. INSTALL NO. 1 CONSOLE UPPER PANEL GARNISH

    Refer to PROCEDURE - Step 6 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 6 [10/2022 - 10/2023]

  4. INSTALL LOWER NO. 1 INSTRUMENT PANEL PAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 33 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 32 [10/2022 - 10/2023]

  5. INSTALL COWL SIDE TRIM BOARD LH

    Refer to PROCEDURE - Step 34 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 33 [10/2022 - 10/2023]

  6. INSTALL FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 42 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 42 [11/2021 - 10/2023]

  7. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 35 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 34 [10/2022 - 10/2023]

  8. INSTALL INSTRUMENT SIDE PANEL LH

    Refer to PROCEDURE - Step 36 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 35 [10/2022 - 10/2023]

  9. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

  10. INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 11

  11. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL

    Refer to WORK PROCEDURE [10/2020 - 10/2022] , or refer to WORK PROCEDURE [10/2022 - 10/2023]

    HINT:

    When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

    Refer to AUTOMATIC LEARNING CHART [10/2020 - 10/2023]

  12. PERFORM CODE REGISTRATION

    Refer to REGISTRATION [10/2020 - 10/2022] , or refer to REGISTRATION [10/2022 - 10/2023]

  13. PERFORM DIAGNOSTIC SYSTEM CHECK

    Refer to DTC CHECK / CLEAR [12/2017 - 10/2023]

  14. CHECK SRS WARNING LIGHT

    Refer to OPERATION CHECK [12/2017 - 11/2021] , or refer to OPERATION CHECK [11/2021 - 10/2023]
