Installation [10/2020 - 10/2022]: Procedure

INSTALL MULTI-DISPLAY CONTROLLER BRACKET A

Attach the guide to temporarily install the multi-display controller bracket A.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Do not touch the multi-display controller bracket A to the No. 1 instrument panel garnish sub-assembly.

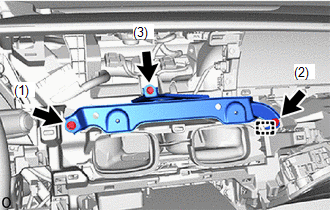

Install the multi-display controller bracket A with the 3 bolts in order shown in the illustration.

INSTALL MULTI-DISPLAY ASSEMBLY

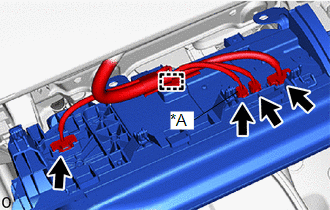

Connect each connector to attach the clamp.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ Panoramic View Monitor System

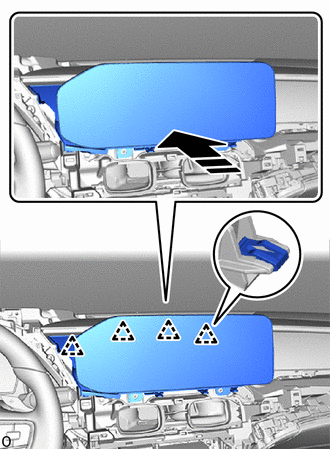

Attach the clip to temporarily install the multi-display assembly as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

NOTE:

Do not subject the multi-display assembly to excessive force or damage it.
Be careful that the cushion does not interfere with the No. 1 instrument panel garnish sub-assembly.

Install the multi-display assembly with the 2 bolts.

INSTALL INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY
Refer to PROCEDURE - Step 23
INSTALL INSTRUMENT PANEL SAFETY PAD INSERT SUB-ASSEMBLY
Refer to PROCEDURE - Step 26
INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 27
INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
Refer to PROCEDURE - Step 31
INSTALL LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY
Refer to PROCEDURE - Step 25
INSTALL LOWER NO. 1 INSTRUMENT PANEL PAD SUB-ASSEMBLY
Refer to PROCEDURE - Step 33
INSTALL INSTRUMENT SIDE PANEL RH
Refer to PROCEDURE - Step 8
INSTALL INSTRUMENT SIDE PANEL LH
Refer to PROCEDURE - Step 9
