Removal [03/2017 - 05/2023]: Procedure

PRECAUTION
NOTE:
After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

Refer to PRECAUTION [03/2017 - 05/2023]
REMOVE NO. 2 DECK BOARD
Refer to PROCEDURE - Step 11 [03/2017 - 01/2021] , or refer to PROCEDURE - Step 12 [01/2021 - 05/2023]

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

WARNING:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Wait at least 90 seconds after disconnecting the cable from the negative(-) battery terminal to disable the SRS system.
Refer to PRECAUTION [03/2017 - 04/2020] , or refer to PRECAUTION [04/2020 - 05/2023]
If the airbag deploys for any reason, it may cause a serious accident.

NOTE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

REMOVE INTEGRATION CONTROL AND PANEL ASSEMBLY
Refer to REMOVAL [03/2017 - 05/2023]
REMOVE RADIO RECEIVER ASSEMBLY WITH BRACKET
Refer to PROCEDURE - Step 5
REMOVE NO. 1 RADIO BRACKET
Refer to PROCEDURE - Step 7
REMOVE NO. 2 RADIO BRACKET
Refer to PROCEDURE - Step 8

REMOVE NO. 1 NAVIGATION WIRE

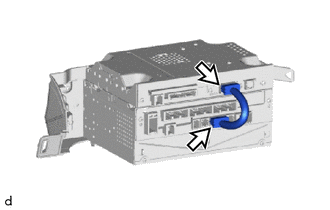

Disconnect the 2 connectors and remove the No. 1 navigation wire and navigation ECU.

REMOVE NO. 1 WIRING HARNESS CLAMP BRACKET

Remove the screw.
