Removal [08/2015 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the auxiliary battery terminal notice before proceeding with work (Refer to PRECAUTION [08/2015 - ] ).

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [08/2015 - 08/2019] , or refer to INITIALIZATION [08/2019 - 08/2021] , or refer to INITIALIZATION [08/2021 - 08/2022] , or refer to INITIALIZATION [08/2022 - ] ).

  3. REMOVE FRONT WHEEL RH
  4. REMOVE FRONT FENDER APRON SEAL RH

    Refer to PROCEDURE - Step 12 [08/2015 - 08/2020] , or refer to PROCEDURE - Step 12 [08/2020 - ]

  5. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 16 [08/2015 - 08/2020] , or refer to PROCEDURE - Step 16 [08/2020 - ]

  6. REMOVE AIR CLEANER CAP AND HOSE

    Refer to PROCEDURE - Step 24 [08/2015 - 08/2020] , or refer to PROCEDURE - Step 24 [08/2020 - ]

  7. REMOVE AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY
  8. REMOVE AIR CLEANER CASE

    Refer to PROCEDURE - Step 26 [08/2015 - 08/2020] , or refer to PROCEDURE - Step 26 [08/2020 - ]

  9. REMOVE RADIATOR SUPPORT UPPER SEAL

    Refer to PROCEDURE - Step 15 [08/2015 - 08/2020] , or refer to PROCEDURE - Step 15 [08/2020 - ]

  10. REMOVE FAN AND GENERATOR V BELT

    Refer to PROCEDURE - Step 3

  11. DISCONNECT NO. 1 OIL RESERVOIR TO PUMP HOSE
    1. Slide the clip and disconnect the oil reservoir to pump hose from the vane pump.

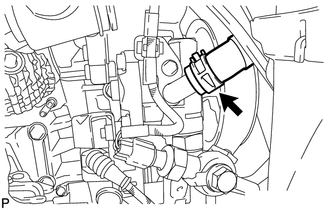

      GTY257563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. DISCONNECT POWER STEERING OIL PRESSURE SWITCH CONNECTOR
    1. Disconnect the connector.

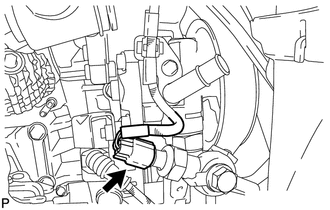

      GTY282320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. DISCONNECT PRESSURE FEED TUBE
    1. Remove the union bolt and disconnect the pressure feed tube.

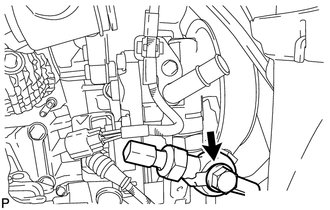

      GTY257570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the gasket.
  14. REMOVE VANE PUMP ASSEMBLY
    1. Remove the 2 bolts and vane pump.

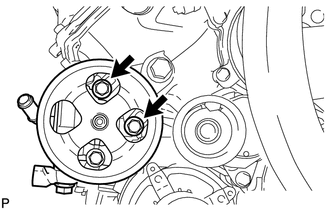

      GTY282316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
