Removal [08/2015 - ]: Procedure

  1. REMOVE ROOF HEADLINING ASSEMBLY
    1. Remove the roof headlining assembly (Refer to REMOVAL [08/2015 - 08/2016] , or refer to REMOVAL [08/2016 - 08/2019] , or refer to REMOVAL [08/2019 - ] ).
  2. REMOVE NO. 2 AIR DUCT REAR SIDE (w/ Rear Air Conditioning System)

    Refer to PROCEDURE - Step 30 [08/2015 - 08/2016] , or refer to PROCEDURE - Step 30 [08/2016 - ]

  3. REMOVE NO. 1 AIR DUCT REAR SIDE (w/ Rear Air Conditioning System)

    Refer to PROCEDURE - Step 31 [08/2015 - 08/2016] , or refer to PROCEDURE - Step 31 [08/2016 - ]

  4. REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY LH (w/o Rear No. 2 Seat)
    1. Disconnect the connector.
      NOTE:

      When handling the airbag connector, take care not to damage the airbag wire harness.

    2. Remove the 13 bolts and curtain shield airbag.

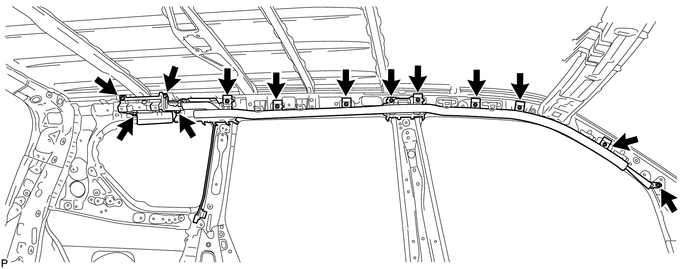

      GTY286178Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY LH (w/ Rear No. 2 Seat)
    1. Disconnect the connector.
      NOTE:

      When handling the airbag connector, take care not to damage the airbag wire harness.

    2. Remove the 17 bolts and curtain shield airbag.

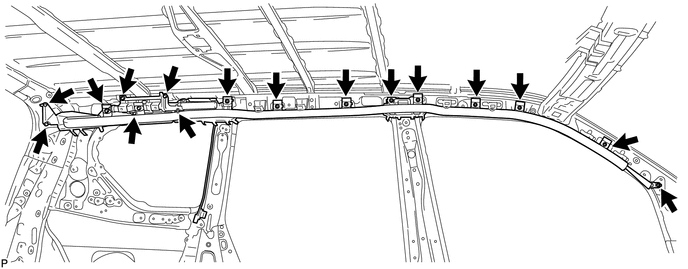

      GTY274202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
