Removal [08/2021 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch is turned off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (Refer to PRECAUTION [08/2015 - ] ).

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [08/2021 - 08/2022] , or refer to INITIALIZATION [08/2022 - ] ).

  3. REMOVE INSTRUMENT PANEL FINISH PANEL END LH

    Refer to PROCEDURE - Step 3

  4. REMOVE INSTRUMENT PANEL FINISH PANEL END RH

    Refer to PROCEDURE - Step 4

  5. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7

  6. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8

  7. REMOVE FRONT UPPER CONSOLE PANEL GARNISH

    Refer to PROCEDURE - Step 36

  8. REMOVE RADIO RECEIVER ASSEMBLY WITH NAVIGATION ECU

    Refer to PROCEDURE - Step 8

  9. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL GARNISH

    Refer to PROCEDURE - Step 27

  10. REMOVE NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY

    Refer to PROCEDURE - Step 28

  11. REMOVE NO. 1 INSTRUMENT PANEL FINISH CUSHION

    Refer to PROCEDURE - Step 19

  12. REMOVE MULTI-DISPLAY ASSEMBLY WITH BRACKET

    Refer to PROCEDURE - Step 12

  13. REMOVE NO. 4 INSTRUMENT PANEL REGISTER ASSEMBLY

    Refer to PROCEDURE - Step 13

  14. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY

    HINT:

    Use the same procedure described for the No. 4 instrument panel register assembly.

  15. REMOVE NO. 4 INSTRUMENT PANEL WIRE

    Refer to PROCEDURE - Step 15

  16. REMOVE MULTI-DISPLAY CONTROLLER BRACKET A

    Refer to PROCEDURE - Step 16

  17. REMOVE MULTI-DISPLAY CONTROLLER BRACKET B

    Refer to PROCEDURE - Step 17

  18. REMOVE INTEGRATION CONTROL AND PANEL ASSEMBLY

    Refer to PROCEDURE - Step 2

  19. REMOVE AIR CONDITIONING CONTROL ASSEMBLY

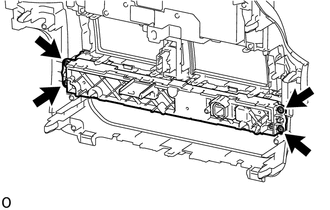

    1. Remove the 4 screws.
      GTY1083574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

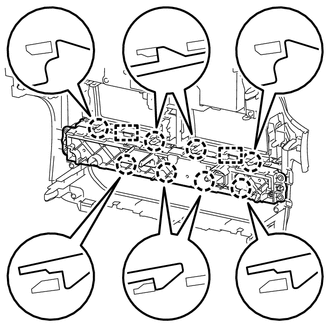

    2. Detach the 8 claws and 2 guides to remove the air conditioning control assembly.
      GTY1083573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE HEATER CONTROL RETAINER
    1. Remove the 5 screws.
      GTY1083572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

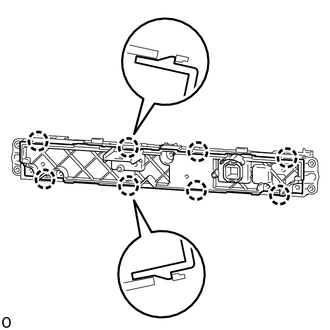

    2. Detach the 8 claws and remove the heater control retainer.
      GTY1083571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE CENTER CLUSTER MODULE LENS
    1. Detach the 2 claws and remove the center cluster module lens.
      GTY1083570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE NO. 2 CENTER CLUSTER MODULE LENS
    1. Use the same procedure for the center cluster module lens.
