Removal [08/2021 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work.

    Refer to PRECAUTION [08/2015 - ]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [08/2021 - 08/2022] , or refer to INITIALIZATION [08/2022 - ]

  3. REMOVE INSTRUMENT PANEL FINISH PANEL END LH

    Refer to PROCEDURE - Step 3

  4. REMOVE INSTRUMENT PANEL FINISH PANEL END RH

    Refer to PROCEDURE - Step 4

  5. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7

  6. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8

  7. REMOVE FRONT UPPER CONSOLE PANEL GARNISH

    Refer to PROCEDURE - Step 36

  8. REMOVE RADIO RECEIVER ASSEMBLY WITH NAVIGATION ECU

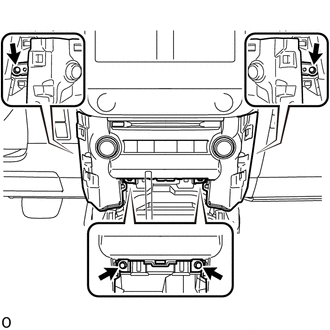

    1. Remove the 4 bolts.
      GTY1083676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

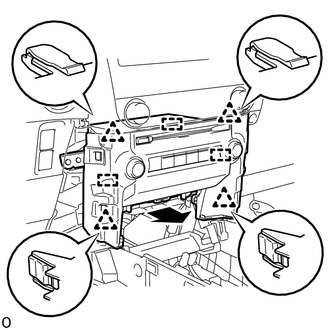

    2. Pull the radio receiver assembly with navigation ECU to detach the clip and guide on the backside of the radio receiver assembly with navigation ECU.
      GTY1083677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect each connector and remove the radio receiver assembly with navigation ECU.
  9. REMOVE NO. 1 RADIO BRACKET

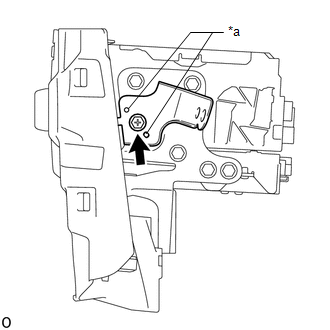

    1. Remove the screw.
      GTY1083653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Guide
    2. Detach the guide and remove the No. 1 radio bracket.
  10. REMOVE NO. 2 RADIO BRACKET

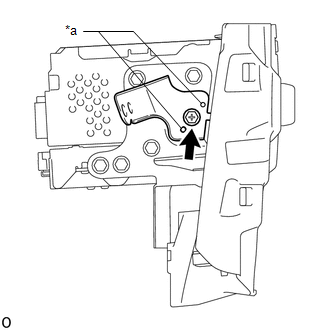

    1. Remove the screw.
      GTY1083840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Guide
    2. Detach the guide and remove the No. 2 radio bracket.
  11. REMOVE NO. 1 NAVIGATION WIRE

    Refer to PROCEDURE - Step 11

  12. REMOVE RADIO RECEIVER BRACKET A

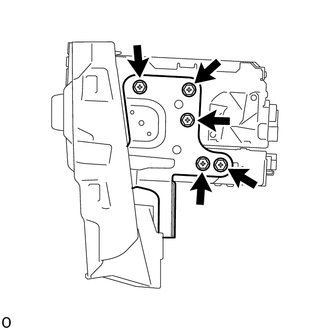

    1. Remove the 5 screws and radio receiver bracket A.
      GTY1083596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE RADIO RECEIVER BRACKET B

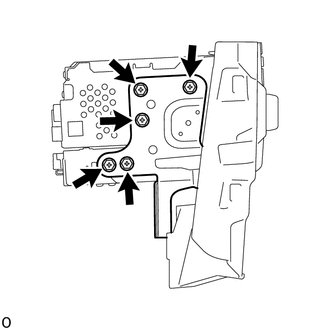

    1. Remove the 5 screws and radio receiver bracket B.
      GTY1083595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE RADIO RECEIVER ASSEMBLY
