Removal [08/2015 - ]: Procedure

  1. REMOVE LOWER FRONT BUMPER COVER

    Refer to PROCEDURE - Step 7 [08/2015 - 08/2020] , or refer to PROCEDURE - Step 7 [08/2020 - ]

  2. REMOVE NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8 [08/2015 - 08/2020] , or refer to PROCEDURE - Step 8 [08/2020 - ]

  3. REMOVE ENGINE OIL PRESSURE SWITCH ASSEMBLY
    1. Disconnect the oil pressure switch connector.

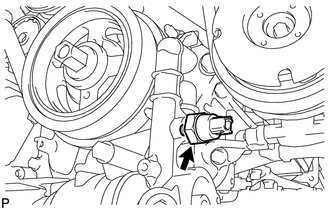

    2. GTY274179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the oil pressure switch.
