Removal [08/2015 - ]: Procedure

  1. REMOVE UPPER RADIATOR SUPPORT SEAL

    Refer to PROCEDURE - Step 15 [08/2015 - 08/2020] , or refer to PROCEDURE - Step 15 [08/2020 - ]

  2. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 16 [08/2015 - 08/2020] , or refer to PROCEDURE - Step 16 [08/2020 - ]

  3. REMOVE AIR CLEANER CAP AND HOSE

    Refer to PROCEDURE - Step 24 [08/2015 - 08/2020] , or refer to PROCEDURE - Step 24 [08/2020 - ]

  4. REMOVE LOWER FRONT BUMPER COVER

    Refer to PROCEDURE - Step 7 [08/2015 - 08/2020] , or refer to PROCEDURE - Step 7 [08/2020 - ]

  5. REMOVE NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8 [08/2015 - 08/2020] , or refer to PROCEDURE - Step 8 [08/2020 - ]

  6. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 5

  7. DISCONNECT NO. 12 WATER BY-PASS HOSE

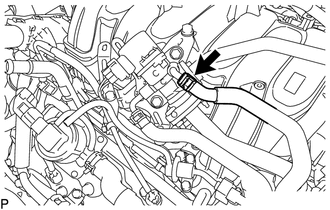

    1. GTY461509Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Disconnect the No. 12 water by-pass hose from the EGR valve assembly.

  8. DISCONNECT NO. 13 WATER BY-PASS HOSE

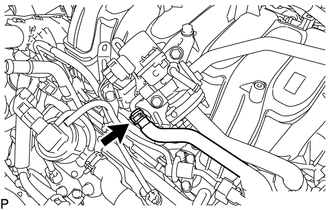

    1. GTY461508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Disconnect the No. 13 water by-pass hose from the EGR valve assembly.

  9. REMOVE EGR VALVE ASSEMBLY

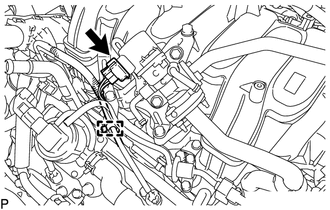

    1. GTY461532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Detach the wire harness clamp and disconnect the EGR valve connector.

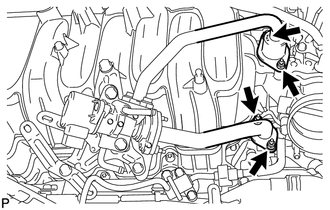

    2. GTY255883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 4 nuts.

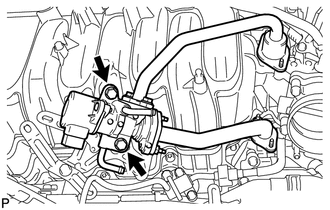

    3. GTY255884Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 2 bolts and EGR valve assembly.

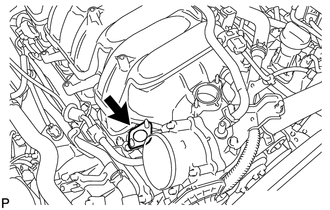

    4. GTY255885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the gasket from the No. 2 EGR pipe.

      NOTE:

      Be careful not to damage the surfaces that contact the gasket.

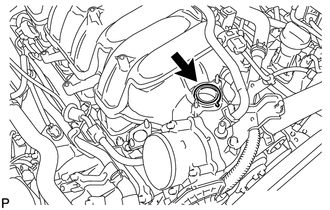

    5. GTY255886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the gasket from the intake manifold.

  10. REMOVE EGR INLET
    1. GTY267210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 2 bolts, EGR inlet and gasket.

      NOTE:

      Be careful not to damage the surfaces that contact the gasket.

  11. REMOVE NO. 3 EGR PIPE SUB-ASSEMBLY
    1. GTY284555Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 2 nuts, No. 3 EGR pipe sub-assembly and gasket.

      NOTE:

      Be careful not to damage the surfaces that contact the gasket.

  12. REMOVE EGR VALVE BRACKET

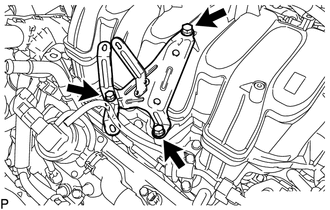

    1. GTY461533Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 3 bolts and EGR valve bracket.
