Removal [08/2015 - ]: Procedure

  1. REMOVE ENGINE ROOM SIDE COVER

    Refer to PROCEDURE - Step 18 [08/2015 - 08/2020] , or refer to PROCEDURE - Step 18 [08/2020 - ]

  2. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 16 [08/2015 - 08/2020] , or refer to PROCEDURE - Step 16 [08/2020 - ]

  3. REMOVE AIR CLEANER CAP AND HOSE

    Refer to PROCEDURE - Step 24 [08/2015 - 08/2020] , or refer to PROCEDURE - Step 24 [08/2020 - ]

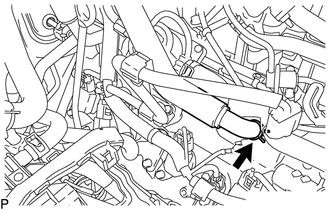

  4. DISCONNECT NO. 3 VENTILATION HOSE
    1. Slide the clamp and disconnect the No. 3 ventilation hose.
      GTY469698Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

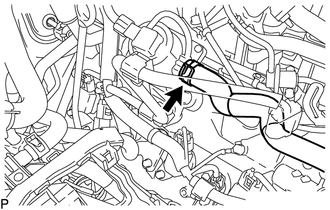

  5. DISCONNECT NO. 1 AIR INJECTION SYSTEM HOSE
    1. Slide the clamp and disconnect the No. 1 air injection system hose.
      GTY461525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE AIR SWITCHING VALVE ASSEMBLY

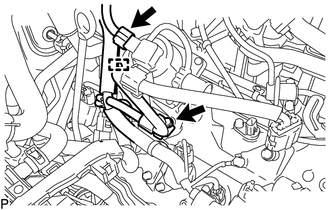

    1. GTY461526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Detach the wire harness clamp and disconnect the air switching valve connector.

    2. Remove the bolt and disconnect the wire harness clamp bracket.

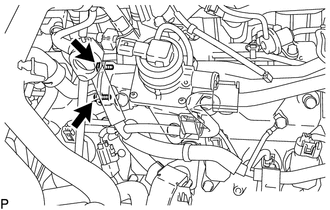

    3. GTY461527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 2 bolts.

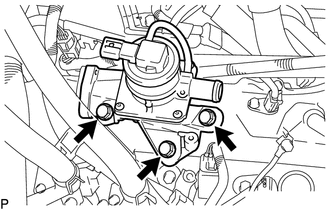

    4. GTY461522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 3 bolts, air switching valve assembly and gasket.

      NOTE:

      Be careful not to damage the surfaces that contact the gasket.
