Removal [08/2015 - ]: Procedure

  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 16 [08/2015 - 08/2020] , or refer to PROCEDURE - Step 16 [08/2020 - ]

  2. REMOVE ENGINE ROOM SIDE COVER LH

    Refer to PROCEDURE - Step 17 [08/2015 - 08/2020] , or refer to PROCEDURE - Step 17 [08/2020 - ]

  3. DISCONNECT NO. 2 AIR INJECTION SYSTEM HOSE

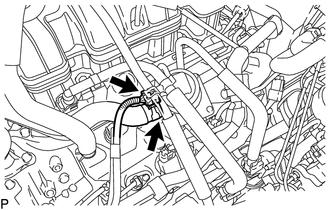

    1. GTY469700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Disconnect the air switching valve connector.

    2. Slide the clamp and disconnect the No. 2 air injection system hose.
  4. REMOVE AIR SWITCHING VALVE ASSEMBLY

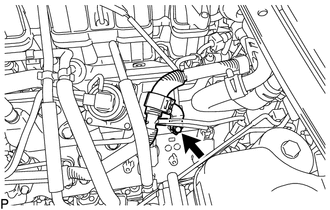

    1. GTY461530Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the bolt and disconnect the wire harness clamp bracket.

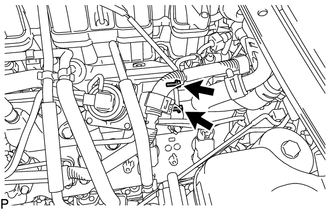

    2. GTY461531Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 2 bolts.

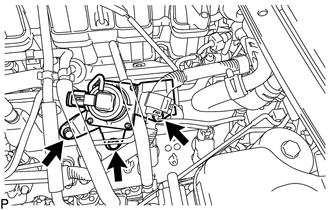

    3. GTY461529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 3 bolts, air switching valve assembly and gasket.

      NOTE:

      Be careful not to damage the surfaces that contact the gasket.
