Removal [08/2015 - ]: Procedure

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:
    • w/ Navigation System:

      After the engine switch is turned off, the display and navigation module display (navigation system) records various types of memory and settings. As a result, after turning the engine switch off, be sure to wait for the time specified in the following table before disconnecting the cable from the negative (-) battery terminal.

      Waiting Time before Disconnecting Cable from Negative (-) Battery Terminal

      Condition Waiting Time
      Vehicle enrolled in safety connect system 6 minutes
      Vehicle not enrolled in safety connect system 1 minute
    • When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [08/2015 - 08/2019] , or refer to INITIALIZATION [08/2019 - 08/2021] , or refer to INITIALIZATION [08/2021 - 08/2022] , or refer to INITIALIZATION [08/2022 - ] ).
  2. REMOVE RADIATOR ASSEMBLY
    1. Remove the radiator assembly (Refer to REMOVAL [08/2015 - ] ).
  3. REMOVE AIR CLEANER CAP AND HOSE

    Refer to PROCEDURE - Step 24 [08/2015 - 08/2020] , or refer to PROCEDURE - Step 24 [08/2020 - ]

  4. REMOVE AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY
  5. REMOVE AIR CLEANER CASE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 26 [08/2015 - 08/2020] , or refer to PROCEDURE - Step 26 [08/2020 - ]

  6. REMOVE FRONT FENDER APRON SEAL RH

    Refer to PROCEDURE - Step 12 [08/2015 - 08/2020] , or refer to PROCEDURE - Step 12 [08/2020 - ]

  7. DISCONNECT VANE PUMP ASSEMBLY

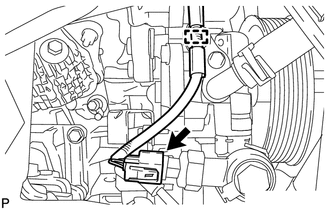

    1. Detach the clamp and disconnect the connector.
      GTY271366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and disconnect the vane pump.
      GTY610877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE GENERATOR ASSEMBLY

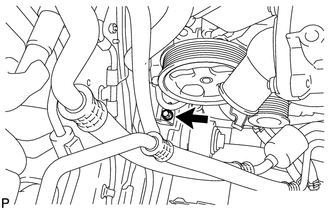

    1. Remove the bolt and disconnect the No. 2 return tube bracket.
      GTY617871Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

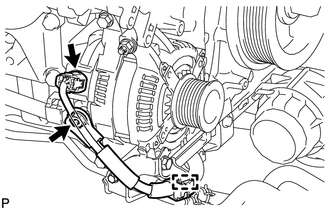

    2. Disconnect the generator connector.
      GTY286398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the terminal cap.
    4. Remove the nut and disconnect the generator wire.
    5. Detach the generator wire.

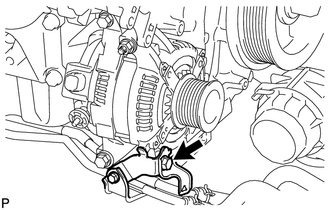

    6. Remove the bolt and disconnect the wire harness bracket from the generator.
      GTY275129Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

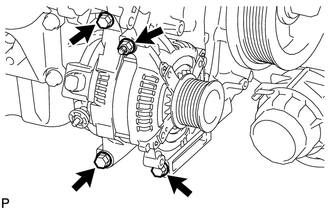

    7. Remove the 3 bolts, nut and generator.
      GTY282198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
