Removal [10/2015 - ]: Procedure

  1. CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM

    Refer to PROCEDURE - Step 2 [10/2015 - 09/2017], or Refer to PROCEDURE - Step 2 [09/2017 - ]

  2. REMOVE NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to REMOVAL [10/2015 - ]

  3. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 18 [10/2015 - 09/2017], or Refer to PROCEDURE - Step 18 [09/2017 - ]

  4. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 19 [10/2015 - 09/2017], or Refer to PROCEDURE - Step 19 [09/2017 - ]

  5. REMOVE TRIP SWITCH

    See step  5

  6. REMOVE HEADUP DISPLAY SWITCH ASSEMBLY

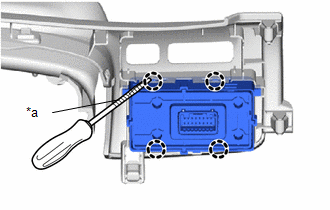

    1. Using a screwdriver with its tip wrapped in protective tape, disengage the claws to remove the headup display switch assembly.
      GTY612214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
