Removal [08/2020 - ]: Procedure

  1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 20 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 20 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 20 [09/2022 - ]

  2. REMOVE IGNITION COIL ASSEMBLY

    Refer to PROCEDURE - Step 2

  3. REMOVE SPARK PLUG

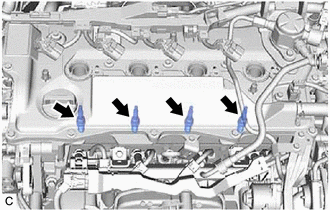

    1. GTY948605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 4 spark plugs from the cylinder head sub-assembly.

      NOTE:

      If a spark plug has been struck or dropped, replace it.

      HINT:

      Arrange the removed parts in the correct order.
