Removal [08/2020 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus ES 250, 2023 Lexus ES 250, 2022 Lexus ES 250, and 2021 Lexus ES 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 20 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 20 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 20 [09/2022 - ]

  2. REMOVE IGNITION COIL ASSEMBLY

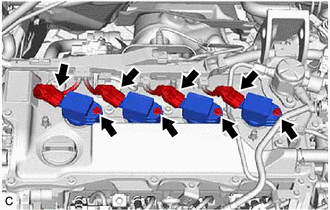

    1. Disconnect the 4 ignition coil assembly connectors.
      GTY948606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using an 8 mm socket wrench, remove the 4 bolts and 4 ignition coil assemblies from the cylinder head cover sub-assembly.
      NOTE:

      If an ignition coil assembly has been struck or dropped, replace it.

      HINT:

      Arrange the removed parts in the correct order.

  3. REMOVE SPARK PLUG

    Refer to PROCEDURE - Step 3
