Installation [06/2018 - 08/2021]: Procedure

  1. TEMPORARILY INSTALL AIR CONDITIONER UNIT ASSEMBLY
    1. Temporarily install the air conditioner unit assembly to the instrument panel reinforcement assembly with the 3 bolts.
  2. INSTALL INSTRUMENT PANEL REINFORCEMENT ASSEMBLY WITH AIR CONDITIONER UNIT ASSEMBLY
    NOTE:
    • Be sure to support the air conditioner unit assembly when installing it. Failure to do so may cause the bracket of the air conditioner unit assembly to break.
    • When installing the air conditioner unit assembly, eliminate static electricity by touching the vehicle body to prevent the components from being damaged.
    1. Engage the 2 guides and claw to connect the ID code box (immobiliser code ECU) as shown in the illustration.
      GTY782271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

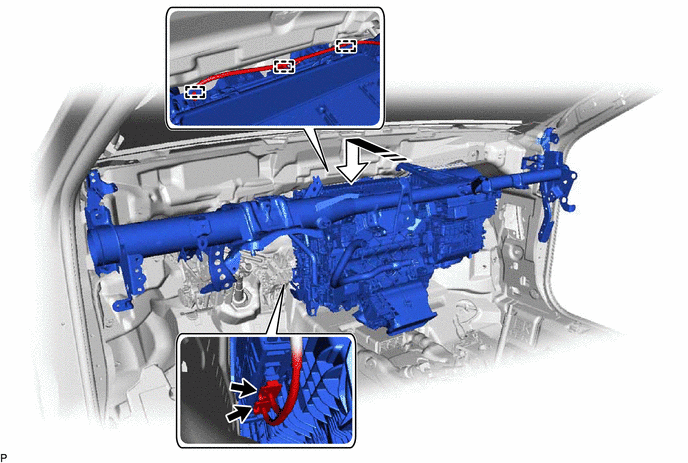

    2. Connect each connector.
      GTY807760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction - -
    3. Engage each clamp.
    4. Temporarily install the instrument panel reinforcement assembly with air conditioner unit assembly as shown in the illustration.
    5. Install the 4 bolts (A).
      GTY830705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt (A) Bolt (B)
      Nut - -

      Torque: 25 N.m (255 kgf/cm, 18 ft.lbf)

    6. Connect the brake pedal assembly with the bolt (B).

      Torque: 15 N.m (153 kgf/cm, 11 ft.lbf)

    7. Temporarily install the nut.
    8. Install the 3 bolts.

      Torque: 25 N.m (255 kgf/cm, 18 ft.lbf)

    9. Install the 2 hole plugs.
    10. Install a new cooler unit drain hose grommet.
      NOTE:
      • If the drain cooler hose is disconnected from the cooler unit drain hose grommet, make sure to replace the cooler unit drain hose grommet with a new one. Failure to do so may lead to water ingress.
      • Make sure that the entire lip of the cooler unit drain hose grommet is securely engaged to the vehicle body.
      GTY828621Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Lip
    11. Connect the drain cooler hose.
    12. Install the front floor mat to its original position as shown in the illustration.
      GTY790405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL NO. 2 INSTRUMENT PANEL BRACE SUB-ASSEMBLY
    1. Install the No. 2 instrument panel brace sub-assembly with the bolt and nut.

      Bolt

      Torque: 20 N.m (204 kgf/cm, 15 ft.lbf)

      Nut

      Torque: 18 N.m (184 kgf/cm, 13 ft.lbf)

    2. Temporarily install the screw.

      HINT:

      Do not fully tighten the screw.

    3. Engage each clamp.
  4. INSTALL NO. 1 INSTRUMENT PANEL BRACE SUB-ASSEMBLY
    1. Install the No. 1 instrument panel brace sub-assembly with the bolt and nut.

      Bolt

      Torque: 20 N.m (204 kgf/cm, 15 ft.lbf)

      Nut

      Torque: 18 N.m (184 kgf/cm, 13 ft.lbf)

    2. Temporarily install the screw.

      HINT:

      Do not fully tighten the screw.

    3. Engage each clamp.
    4. Connect the earth wire with the bolt.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

  5. INSTALL AIR CONDITIONER UNIT ASSEMBLY
    1. Tighten the 3 bolts, 2 screws and nut to install the air conditioner unit assembly.
      Fig 1: Air Conditioner Unit Bolt, Screw And Nut Tightening Sequence [06/2018 - 08/2021]

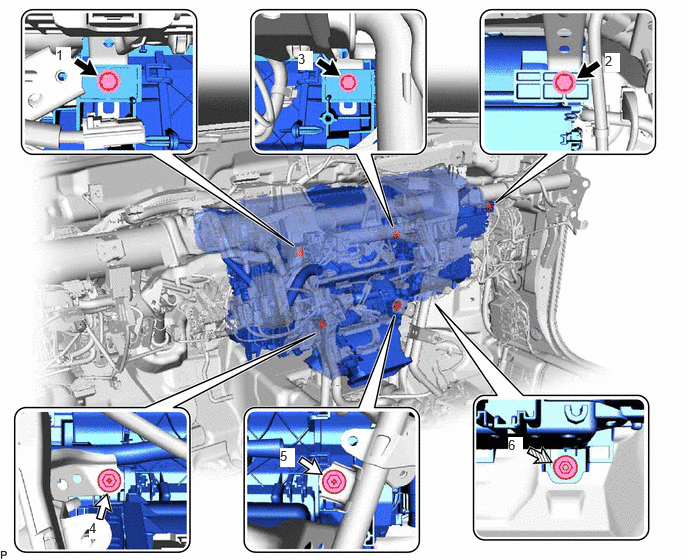

      GTY794086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt Screw
      Nut - -

      Bolt

      Torque: 9.8 N.m (100 kgf/cm, 87 in.lbf)

      Nut

      Torque: 9.8 N.m (100 kgf/cm, 87 in.lbf)

      NOTE:

      Tighten the bolts, screws and nut in the order shown in the illustration.

  6. CONNECT INSTRUMENT PANEL WIRE
    1. Engage each clamp.
      GTY827429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Lock Lever
      Move in this Direction
    2. Temporarily connect the connector and then move the lock lever as shown in the illustration to securely connect the connector.
      NOTE:

      When connecting any airbag connector, take care not to damage the airbag wire harness.

    3. Check that there is no looseness in the installed parts of the airbag sensor assembly.
    4. Engage each clamp.
    5. Connect the connector holder with the 2 nuts.

      Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

    6. Connect the 4 earth wires with the 4 bolts.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

    7. Connect the relay block holder with the bolt.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

    8. Connect the connector.
  7. INSTALL HYBRID VEHICLE CONTROL ECU

    Refer to PROCEDURE - Step 1

  8. INSTALL NO. 1 SIDE DEFROSTER NOZZLE DUCT
    1. Install the No. 1 side defroster nozzle duct with the clip.
  9. INSTALL INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY WITH MAIN BODY ECU

    Refer to PROCEDURE - Step 3

  10. INSTALL NO. 3 INSTRUMENT PANEL TO COWL BRACE SUB-ASSEMBLY
    1. Install the No. 3 instrument panel to cowl brace sub-assembly with the bolt and nut.

      Bolt

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

      Nut

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

    2. Engage each clamp.
  11. INSTALL NO. 3 DASH PANEL INSULATOR PAD

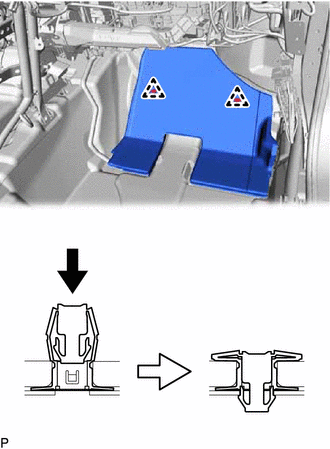

    1. Install the No. 3 dash panel insulator pad with 2 new clips as shown in the illustration.
      GTY790464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL NO. 1 CONSOLE BOX DUCT
    1. Install the No. 1 console box duct with the clip as shown in the illustration.

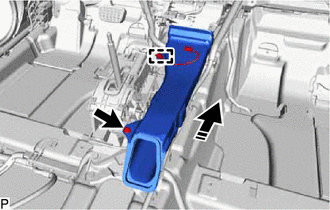

      GTY805284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Engage the clamp.
  13. INSTALL FLOOR CARPET BRACKET LH
    1. Engage the claw as shown in the illustration.

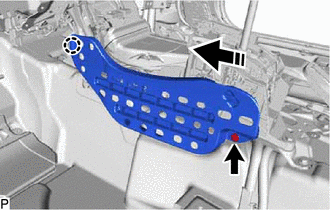

      GTY823738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Install the floor carpet bracket LH with the clip.
  14. INSTALL FLOOR CARPET BRACKET RH
    1. Engage the claw as shown in the illustration.

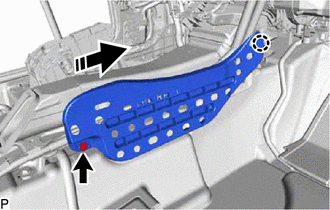

      GTY834980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Install the floor carpet bracket RH with the clip.
  15. INSTALL REAR NO. 2 AIR DUCT
    1. Engage the 2 claws to install the rear No. 2 air duct.
  16. INSTALL REAR NO. 4 AIR DUCT

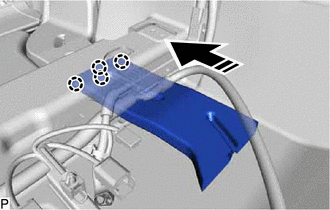

    1. Engage the 4 claws to install the rear No. 4 air duct as shown in the illustration.
      GTY826123Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

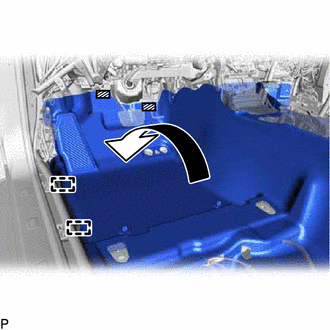

    2. Install the front floor carpet assembly to its original position as shown in the illustration.
      GTY812780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fastener
    3. Engage the 2 guides.
    4. Engage the 2 fasteners.
    5. Install the 3 front floor carpet clips.
  17. INSTALL REAR NO. 1 AIR DUCT
    1. Engage the 2 claws to install the rear No. 1 air duct.
  18. INSTALL REAR NO. 3 AIR DUCT

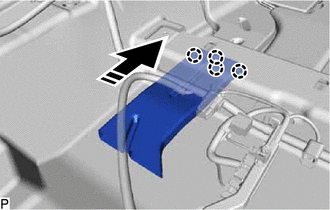

    1. Engage the 4 claws to install the rear No. 3 air duct as shown in the illustration.
      GTY783475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

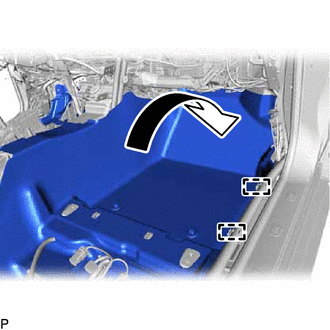

    2. Install the front floor carpet assembly to its original position as shown in the illustration.
      GTY790361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Engage the 2 guides.
    4. Install the 3 front floor carpet clips.
  19. INSTALL FRONT FLOOR CAUTION PLATE COVER
    1. Engage the guide and claw to install the front floor caution plate cover as shown in the illustration.

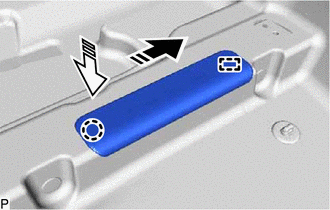

      GTY780319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)
  20. INSTALL ACCELERATOR PEDAL ASSEMBLY

    Refer to PROCEDURE - Step 1

  21. INSTALL ACCELERATOR PEDAL PAD

    Refer to PROCEDURE - Step 2

  22. INSTALL COOLER (ROOM TEMP. SENSOR) THERMISTOR
    1. Connect the aspirator pipe and connector to install the cooler (room temp. sensor) thermistor.
  23. INSTALL STEREO COMPONENT EQUALIZER ASSEMBLY (w/ Active Noise Control System)

    Refer to PROCEDURE - Step 1

  24. INSTALL ECU INTEGRATION BOX RH

    Refer to PROCEDURE - Step 2

  25. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to INSTALLATION [06/2018 - 08/2021]

  26. INSTALL STEERING COLUMN ASSEMBLY

    for Manual Tilt and Manual Telescopic Steering Column:

    Refer to INSTALLATION [06/2018 - 09/2022]

    for Power Tilt and Power Telescopic Steering Column:

    Refer to INSTALLATION [06/2018 - 09/2022]

  27. INSTALL FRONT SEAT ASSEMBLY LH

    for TMC Made:

    Refer to INSTALLATION [06/2018 - 08/2020] , or refer to INSTALLATION [08/2020 - 08/2021]

    for TMMK Made:

    Refer to INSTALLATION [06/2018 - 08/2020] , or refer to INSTALLATION [08/2020 - ]

  28. INSTALL FRONT SEAT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  29. CONNECT AIR CONDITIONING TUBE AND ACCESSORY ASSEMBLY
    1. Remove the vinyl tape from the air conditioning tube and accessory assembly.
    2. Sufficiently apply compressor oil to a new O-ring and the fitting surface of the air conditioning tube and accessory assembly.

      Compressor Oil

      ND-OIL 11 or equivalent

    3. Install the O-ring to the air conditioning tube and accessory assembly.
      NOTE:

      Keep the O-ring and O-ring fitting surface free of foreign matter.

    4. Connect the air conditioning tube and accessory assembly.
  30. CONNECT SUCTION TUBE SUB-ASSEMBLY B
    1. Remove the vinyl tape from the suction tube sub-assembly B.
    2. Sufficiently apply compressor oil to a new O-ring and the fitting surface of the suction tube sub-assembly B.

      Compressor Oil

      ND-OIL 11 or equivalent

    3. Install the O-ring to the suction tube sub-assembly B.
      NOTE:

      Keep the O-ring and O-ring fitting surface free of foreign matter.

    4. Connect the suction tube sub-assembly B.

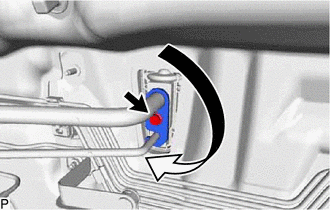

    5. Rotate the hook connector as shown in the illustration.
      GTY790398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Insert the tube joint into the fitting hole securely and install the bolt.

      Torque: 9.8 N.m (100 kgf/cm, 87 in.lbf)

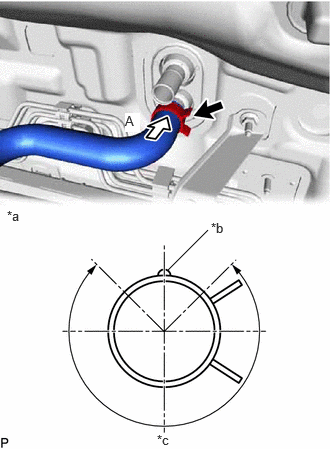

  31. CONNECT INLET HEATER WATER HOSE
    1. Connect the inlet heater water hose with the marking facing up and engage the clip within the area shown in the illustration.
      NOTE:

      Do not apply excessive force to the inlet heater water hose.

      GTY824877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a View A
      *b Marking (White)
      *c Clip Installation Angle (270°)

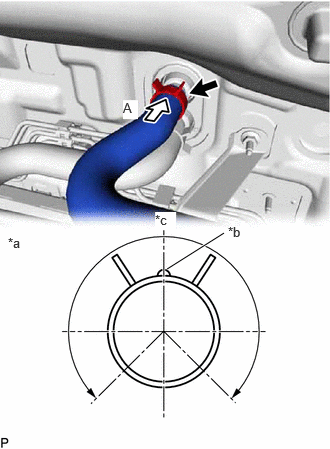

  32. CONNECT OUTLET HEATER WATER HOSE
    1. Connect the outlet heater water hose with the marking facing up and engage the clip within the area shown in the illustration.
      GTY778316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a View A
      *b Marking (Red)
      *c Clip Installation Angle (270°)
      NOTE:

      Do not apply excessive force to the outlet heater water hose.

  33. INSTALL FRONT CENTER UPPER SUSPENSION BRACE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 15

  34. INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

    Refer to INSTALLATION [06/2018 - ]

  35. ADD ENGINE COOLANT (for Engine)

    Refer to PROCEDURE - Step 2

  36. INSPECT FOR COOLANT LEAK (for Engine)

    Refer to PROCEDURE - Step 3

  37. CHARGE AIR CONDITIONING SYSTEM WITH REFRIGERANT

    See step  2

  38. WARM UP COMPRESSOR

    See step  4

  39. INSPECT FOR REFRIGERANT LEAK

    See step  5
