Installation [08/2021 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL VACUUM HOSE
    1. Install the vacuum hose to the intake manifold.
  2. INSTALL NO. 1 ENGINE COVER
    1. Install the No. 1 engine cover with the clip.
  3. INSTALL NO. 1 INTAKE MANIFOLD TO HEAD GASKET
    1. Install a new No. 1 intake manifold to head gasket to the intake manifold.
  4. INSTALL INTAKE MANIFOLD
    1. w/o Stud Bolt:
      1. Temporarily install the intake manifold to the cylinder head sub-assembly with the 5 bolts.

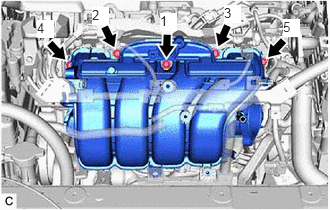

        Fig 1: Intake Manifold Bolt Tightening Sequence (w/o Stud Bolt) [08/2021 - ]
        GTY747938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Tighten the 5 bolts in the order shown in the illustration.

        Torque: 24 N.m (245 kgf/cm, 18 ft.lbf)

    2. w/ Stud Bolt:
      1. Temporarily install the intake manifold to the cylinder head sub-assembly.
        Fig 2: Intake Manifold Bolt Tightening Sequence (w/ Stud Bolt) [08/2021 - ]
        GTY944071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Using an E8 "TORX" socket wrench, install the 2 stud bolts.

        Torque: 6.5 N.m (66 kgf/cm, 58 in.lbf)

      3. Temporarily install the 3 bolts and 2 nuts.

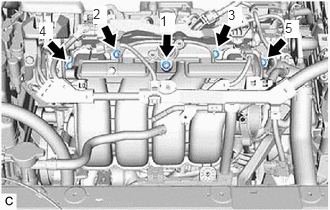

        Fig 3: Intake Manifold Nut & Bolt Tightening Sequence [08/2021 - ]
        GTY912987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. Tighten the 3 bolts and 2 nuts in the order shown in the illustration.

        Torque: 24 N.m (245 kgf/cm, 18 ft.lbf)

  5. INSTALL NO. 2 FUEL VAPOR FEED HOSE
    1. Install the No. 2 fuel vapor feed hose to the intake manifold.
  6. INSTALL NO. 2 WATER BY-PASS PIPE
    1. Temporarily install the No. 2 water by-pass pipe to the cylinder block sub-assembly with the bolt (B).
      GTY742337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using an 8 mm socket wrench, temporarily install the No. 2 water by-pass pipe to the intake manifold with the 2 bolts (A).
    3. Tighten the bolt (B).

      Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

    4. Using the 8 mm socket wrench, tighten the 2 bolts (A).

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

    5. Engage the wire harness clamp to connect the HV air conditioning wire.
  7. CONNECT NO. 3 WATER BY-PASS PIPE
    1. Using an 8 mm socket wrench, connect the No. 3 water by-pass pipe to the intake manifold with the bolt.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

    2. Connect the No. 5 water by-pass hose to the No. 3 water by-pass pipe and slide the clip to secure it.
  8. CONNECT ENGINE WIRE
    1. Engage the wire harness clamp to connect the engine wire to the intake manifold.
      GTY754168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the bolt.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

    3. Connect the engine wire to the cylinder head sub-assembly with the bolt.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

      GTY763895Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Connect the No. 5 engine wire connector.
  9. INSTALL PURGE VALVE (PURGE VSV)

    Refer to INSTALLATION [06/2018 - ]

  10. INSTALL E.F.I. VACUUM SENSOR ASSEMBLY (MANIFOLD ABSOLUTE PRESSURE SENSOR)

    Refer to PROCEDURE - Step 1

  11. INSTALL NO. 1 EGR PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4

  12. CONNECT ENGINE WIRE

    Refer to PROCEDURE - Step 5

  13. INSTALL THROTTLE BODY WITH MOTOR ASSEMBLY

    Refer to INSTALLATION [06/2018 - ]
