Installation [06/2018 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL NO. 2 EXHAUST MANIFOLD HEAT INSULATOR
    1. Type A:
      1. Install the No. 2 exhaust manifold heat insulator to the exhaust manifold (TWC: Front Catalyst) with the 6 bolts.

        Torque: 11 N.m (112 kgf/cm, 8 ft.lbf)

    2. Type B:
      1. Install the No. 2 exhaust manifold heat insulator to the exhaust manifold with the 3 bolts.

        Torque: 11 N.m (112 kgf/cm, 8 ft.lbf)

  2. INSTALL EXHAUST MANIFOLD (TWC: Front Catalyst)
    1. Install a new exhaust manifold to head gasket to the cylinder head sub-assembly.
    2. Temporarily install the exhaust manifold (TWC: Front Catalyst), No. 1 exhaust manifold heat insulator and No. 1 upper front floor heat insulator.

      HINT:

      At this time, do not install the parts with bolts or nuts.

    3. Using a 12 mm deep socket wrench, temporarily install the exhaust manifold (TWC: Front Catalyst) to the cylinder head sub-assembly with 7 new nuts.
      Fig 1: Exhaust Manifold (TWC: Front Catalyst) Nuts With Tightening Sequence
      GTY741917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using the 12 mm deep socket wrench, tighten the 7 nuts in the order shown in the illustration.

      Torque: 26 N.m (265 kgf/cm, 19 ft.lbf)

  3. INSTALL MANIFOLD STAY
    1. Temporarily install the manifold stay to the exhaust manifold (TWC: Front Catalyst) and cylinder block sub-assembly with the bolt and nut.
      Fig 2: Manifold Stay Tightening Sequence
      GTY768521Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Tighten the bolt and nut in the order shown in the illustration.

      Torque: 43 N.m (438 kgf/cm, 32 ft.lbf)

  4. INSTALL NO. 1 EXHAUST MANIFOLD HEAT INSULATOR
    1. Type A:
      1. Using a 10 mm union nut wrench, install the No. 1 exhaust manifold heat insulator to the exhaust manifold (TWC: Front Catalyst) with the 5 bolts.
        GTY769035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Torque Wrench Fulcrum Length

        Specified tightening torque

        Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

        HINT:

        • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

          Refer to PRECAUTION [06/2018 - ]

        • When using a 10 mm union nut wrench (fulcrum length of 22 mm (0.866 in.)) + torque wrench (fulcrum length of 162 mm (6.38 in.)): 8.8 N.m (90 kgf/cm, 78 in.lbf)
    2. Type B:
      1. Install the No. 1 exhaust manifold heat insulator to the exhaust manifold with the 3 bolts.

        Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

  5. INSTALL NO. 1 UPPER FRONT FLOOR HEAT INSULATOR
    1. Using a 10 mm union nut wrench, install the No. 1 upper front floor heat insulator to the vehicle body with the 2 nuts.

      Specified tightening torque

      Torque: 4.9 N.m (50 kgf/cm, 43 in.lbf)

      HINT:

      • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

        Refer to PRECAUTION [06/2018 - ]

      • When using a 10 mm union nut wrench (fulcrum length of 22 mm (0.866 in.)) + torque wrench (fulcrum length of 162 mm (6.38 in.)): 4.3 N.m (44 kgf/cm, 38 in.lbf)

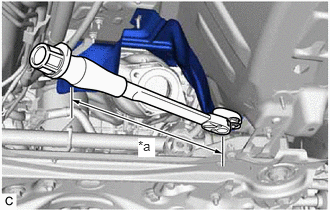

      GTY743910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Torque Wrench Fulcrum Length
  6. INSTALL WIRE HARNESS CLAMP BRACKET
    1. Install the wire harness clamp bracket with the bolt.

      Torque: 13 N.m (133 kgf/cm, 10 ft.lbf)

  7. INSTALL AIR FUEL RATIO SENSOR (for Sensor 1)

    Refer to INSTALLATION [06/2018 - ]

  8. INSTALL FRONT CENTER UPPER SUSPENSION BRACE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 15 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 15 [08/2021 - ]

  9. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

    Refer to INSTALLATION [06/2018 - ]

  10. INSTALL FRONT LOWER NO. 1 FLOOR HEAT INSULATOR

    Refer to PROCEDURE - Step 5

  11. INSTALL FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)
    1. Install 2 new gaskets to the front exhaust pipe assembly (TWC: Rear Catalyst).
    2. Connect the front exhaust pipe assembly (TWC: Rear Catalyst) to the 2 exhaust pipe supports.
    3. Install the front exhaust pipe assembly (TWC: Rear Catalyst) to the exhaust manifold (TWC: Front Catalyst) and center exhaust pipe assembly with 2 new bolts and 2 new nuts.

      Torque: 43 N.m (438 kgf/cm, 32 ft.lbf)

    4. Engage the wire harness clamp.
    5. Connect the air fuel ratio sensor (for sensor 2) connector.
  12. INSTALL CENTER FLOOR CROSSMEMBER BRACE

    See step  5

  13. INSTALL FRONT CENTER FLOOR BRACE

    See step  6

  14. INSTALL FRONT FLOOR COVER LH

    See step  7

  15. INSTALL FRONT FLOOR COVER RH

    See step  8

  16. INSPECT FOR EXHAUST GAS LEAK

    See step  9

  17. INSTALL NO. 2 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 42 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 43 [08/2021 - ]

  18. INSTALL NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 43 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 44 [08/2021 - ]

  19. INSTALL FRONT WHEEL OPENING EXTENSION PAD LH

    Refer to PROCEDURE - Step 44 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 45 [08/2021 - ]

  20. INSTALL FRONT WHEEL OPENING EXTENSION PAD RH

    Refer to PROCEDURE - Step 45 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 46 [08/2021 - ]
