Installation [08/2020 - ]: Procedure

1. Install the 2 lower radiator supports to the radiator assembly.

1. Install the 2 radiator support cushions to the radiator assembly.

1. Engage the 2 guides.
2. Engage the 2 claws to install the fan with motor assembly to the radiator assembly.
   NOTE:

   Do not damage the radiator assembly when installing the fan with motor assembly.

3. Install the radiator assembly with the fan with motor assembly to the vehicle body.
   NOTE:

   Do not apply excessive force to the cooler condenser assembly or pipe when installing the radiator assembly with the fan with motor assembly.

4. Engage the wire harness clamp.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

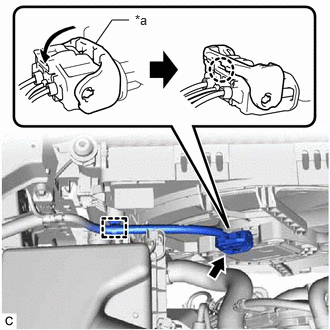

   *a	Lock Lever

5. Connect the cooling fan motor connector and push down the lock lever to engage the claw as shown in the illustration.
   NOTE:

   • When connecting the cooling fan motor connector, make sure that the connecting parts of the cooling fan motor connector are free of dirt, water or other foreign matter.
   • Be sure to securely connect the cooling fan motor connector.
6. Engage the 2 guides.
7. Engage the 2 claws to install the cooler condenser assembly to the radiator assembly.
   NOTE:

   Make sure not to damage the cooler condenser assembly when installing the cooler condenser assembly.

1. Connect the No. 2 radiator hose to the radiator assembly and slide the clip to secure it.

1. Connect the No. 1 radiator hose to the radiator assembly and slide the clip to secure it.
2. Engage the clamp to connect the No. 1 radiator hose to the fan with motor assembly.

1. Connect the No. 6 water by-pass hose to the radiator assembly.

1. Connect the No. 5 water by-pass hose to the radiator assembly and slide the clip to secure it.

1. Install the upper radiator support sub-assembly with the 4 bolts.

   Torque: 12.5 N.m (127 kgf/cm, 9 ft.lbf)

2. Engage the 4 clamps to connect the wire harness to the upper radiator support sub-assembly.
3. Engage the clamp to connect the hood lock control cable assembly to the upper radiator support sub-assembly.

1. Engage the guide and claw.
2. Install the No. 1 radiator air guide RH with the clip.

1. Engage the guide and claw.
2. Install the No. 1 radiator air guide LH with the front radiator side air guide plate LH with the clip.

1. Install the 2 upper radiator mounting brackets with the 2 bolts and 2 nuts.

   Torque: 12.5 N.m (127 kgf/cm, 9 ft.lbf)

2. Connect the 2 horn connectors.

Refer to PROCEDURE - Step 47 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 48 [08/2021 - ]

Refer to PROCEDURE - Step 9

Refer to PROCEDURE - Step 3 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 3 [08/2021 - ]

Refer to PROCEDURE - Step 4 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 4 [08/2021 - ]

Refer to PROCEDURE - Step 5 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 5 [08/2021 - ]

Refer to INSTALLATION [06/2018 - 08/2021] , or refer to INSTALLATION [08/2021 - ]

for LED Type Turn Signal Light: Refer to INSTALLATION [06/2018 - ]

for Bulb Type Turn Signal Light: Refer to INSTALLATION [06/2018 - ]

Refer to PROCEDURE - Step 2

Refer to PROCEDURE - Step 1

Refer to PROCEDURE - Step 71 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 72 [08/2021 - ]

Refer to PROCEDURE - Step 72 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 73 [08/2021 - ]

Refer to PROCEDURE - Step 74 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 75 [08/2021 - ]

Refer to PROCEDURE - Step 73 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 74 [08/2021 - ]
