Removal [08/2020 - 09/2022]: Procedure

  1. REMOVE INSTRUMENT PANEL FINISH PANEL END LH

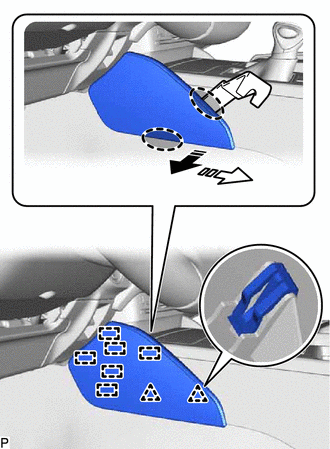

    1. Using a moulding remover, pull the instrument panel finish panel end LH in the direction indicated by the arrow (1) shown in the illustration to disengage the 2 clips.
      GTY799855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Insert Moulding Remover Here
      Remove in this Direction (1)
      Remove in this Direction (2)
    2. Pull the instrument panel finish panel end LH in the direction indicated by the arrow (2) shown in the illustration to disengage the 6 guides and remove it.
  2. REMOVE INSTRUMENT PANEL FINISH PANEL END RH

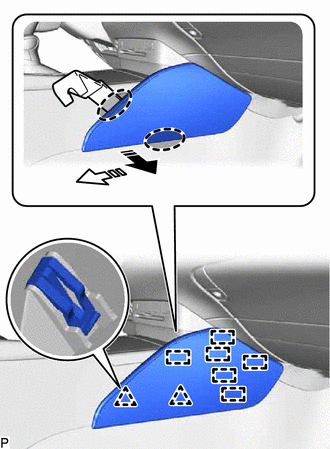

    1. Using a moulding remover, pull the instrument panel finish panel end RH in the direction indicated by the arrow (1) shown in the illustration to disengage the 2 clips.
      GTY816564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Insert Moulding Remover Here
      Remove in this Direction (1)
      Remove in this Direction (2)
    2. Pull the instrument panel finish panel end RH in the direction indicated by the arrow (2) shown in the illustration to disengage the 6 guides and remove it.
  3. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

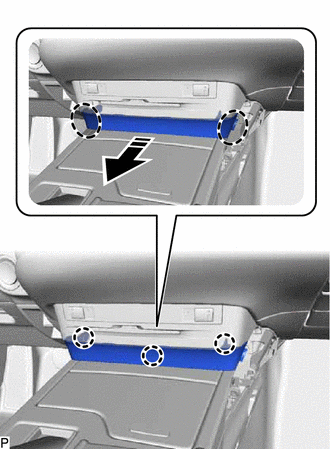

    1. Disengage the 3 claws as shown in the illustration to remove the center instrument cluster finish panel sub-assembly.
      GTY796406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction
  4. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

    for UA80E: Refer to PROCEDURE - Step 1

    for UB80F: Refer to PROCEDURE - Step 1

    for P710: Refer to PROCEDURE - Step 1

  5. REMOVE REAR UPPER CONSOLE PANEL SUB-ASSEMBLY

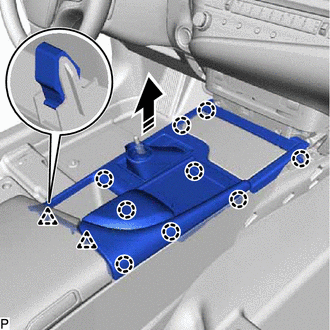

    1. Disengage the 9 claws and 2 clips as shown in the illustration.
      GTY810282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disconnect each connector to remove the rear upper console panel sub-assembly.
  6. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY

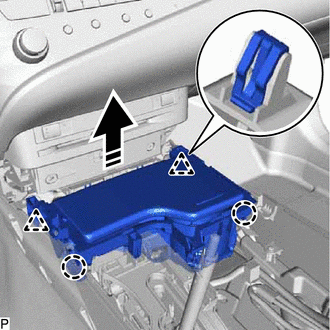

    1. Disengage the 2 claws and 2 clips as shown in the illustration.
      GTY819184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disconnect each connector to remove the upper console panel sub-assembly.
  7. REMOVE CONSOLE REAR END PANEL SUB-ASSEMBLY

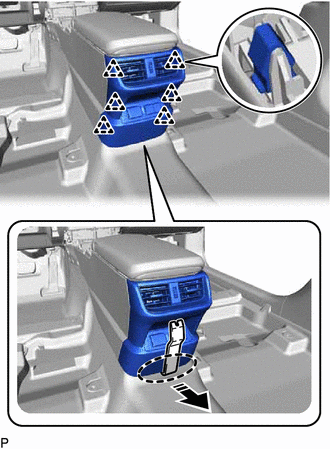

    1. Using a moulding remover, disengage the 6 clips as shown in the illustration.
      GTY779986Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Insert Moulding Remover Here
      Remove in this Direction
    2. Disconnect each connector to remove the console rear end panel sub-assembly.
  8. REMOVE CONSOLE BOX CARPET

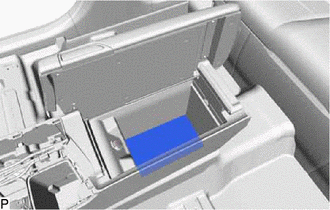

    1. Remove the console box carpet.
      GTY807371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE REAR CONSOLE BOX ASSEMBLY

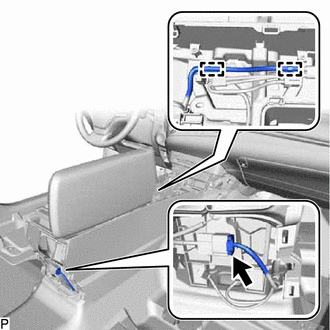

    1. Disconnect the connector.
      GTY807373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 clamps.

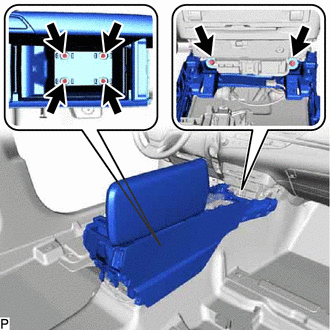

    3. Remove the 6 bolts.
      GTY807367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

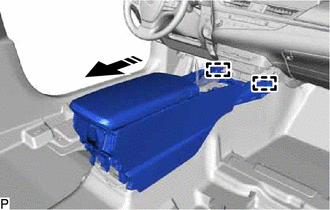

    4. Disengage the 2 guides as shown in the illustration to remove the rear console box assembly.
      GTY822031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
