Removal [06/2018 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

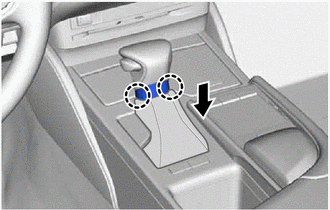

    1. Disengage the 2 claws to disconnect the shifting hole cover sub-assembly as shown in the illustration.
      GTY809678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

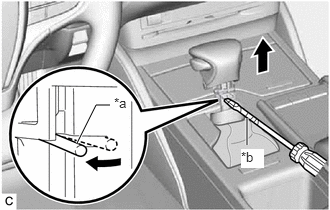

    2. Using a screwdriver with its tip wrapped with protective tape, expand the left side of the clip and remove the shift lever knob sub-assembly from the transmission floor shift assembly as shown in the illustration.
      GTY789331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clip
      *b Protective Tape
      NOTE:

      Be careful not to damage the shift lever knob sub-assembly.
