Removal [08/2021 - ]: Procedure

  1. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 1 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 1 [06/2018 - 08/2021]

  2. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY
    1. Disconnect the connector.

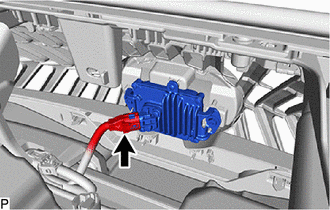

      GTY1087764Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and screw.

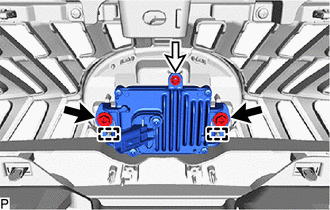

      GTY1087701Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Screw
    3. Disengage the 2 guides and remove the millimeter wave radar sensor assembly.
      NOTE:

      Do not reuse the millimeter wave radar sensor assembly if it has been dropped or subjected to a severe impact.
