Removal [08/2021 - ]: Procedure

  1. REMOVE AIR CONDITIONING CONTROL ASSEMBLY

    Refer to REMOVAL [08/2021 - ]

  2. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY (for 8 Inch Display)

    Refer to PROCEDURE - Step 33 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 33 [09/2022 - ]

  3. REMOVE MULTI-DISPLAY ASSEMBLY WITH CLOCK (for 8 Inch Display)

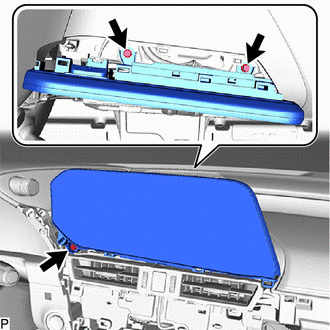

    1. Remove the 3 bolts.
      GTY1087745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

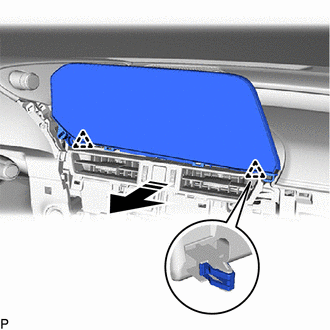

    2. Disengage the 2 clips as shown in the illustration.
      GTY1088096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    3. Disconnect each connector and remove the multi-display assembly with clock.
  4. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY (for 12.3 Inch Display)

    Refer to PROCEDURE - Step 35 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 35 [09/2022 - ]

  5. REMOVE MULTI-DISPLAY ASSEMBLY WITH CLOCK (for 12.3 Inch Display)

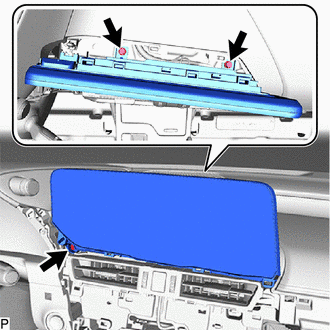

    1. Remove the 3 bolts.
      GTY1087741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

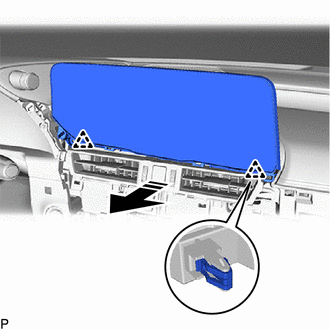

    2. Disengage the 2 clips as shown in the illustration.
      GTY1087932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    3. Disconnect each connector and remove the multi-display assembly with clock.
  6. REMOVE CLOCK ASSEMBLY

    Refer to PROCEDURE - Step 2

  7. REMOVE MULTI-DISPLAY ASSEMBLY
