Removal [08/2021 - ]: Procedure

  1. REMOVE MULTI-DISPLAY ASSEMBLY WITH CLOCK

    Refer to REMOVAL [08/2021 - ]

  2. REMOVE CLOCK ASSEMBLY
    1. for 8 Inch Display:
      1. Disengage the 2 claws and remove the clock assembly.

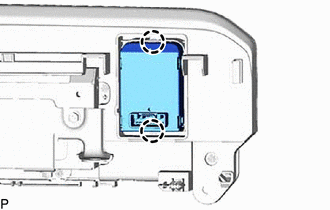

        GTY1087865Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for 12.3 Inch Display:
      1. Disengage the 2 claws and remove the clock assembly.

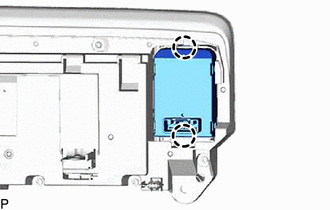

        GTY1087866Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
