Removal [10/2015 - 08/2019]: Procedure

  1. REMOVE REMOTE TOUCH ASSEMBLY
    1. Disengage the 2 claws and 3 clips in the direction indicated by the arrow (1).

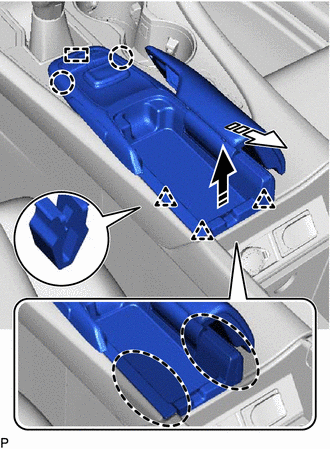

      GTY646086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction (1)
      Remove in this Direction (2)
    2. Pull the remote touch assembly in the direction indicated by the arrow (2) to disengage the guide.
    3. Disconnect the connector and remove the remote touch assembly.

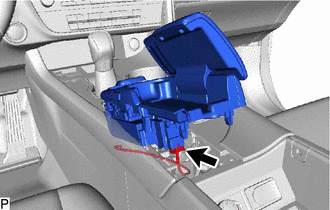

      GTY680686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
