Removal [10/2015 - 08/2016]: Procedure

  1. REMOVE TONNEAU COVER ASSEMBLY

    Refer to PROCEDURE - Step 1

  2. REMOVE DECK BOARD ASSEMBLY

    Refer to PROCEDURE - Step 2

  3. REMOVE REAR NO. 3 FLOOR BOARD

    Refer to PROCEDURE - Step 3

  4. REMOVE REAR DECK FLOOR BOX

    Refer to PROCEDURE - Step 4

  5. REMOVE REAR NO. 4 FLOOR BOARD

    Refer to PROCEDURE - Step 5

  6. REMOVE DECK SIDE TRIM BOX RH

    Refer to PROCEDURE - Step 7

  7. REMOVE REAR FLOOR FINISH PLATE

    Refer to PROCEDURE - Step 8

  8. REMOVE REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 11

  9. REMOVE REAR SEAT ASSEMBLY RH

    Refer to REMOVAL [10/2015 - 08/2016]

  10. REMOVE UPPER QUARTER TRIM PAD RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 23

  11. REMOVE REAR SEAT SIDE GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 24

  12. REMOVE REAR FLOOR FINISH SIDE PLATE RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 25

  13. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

    Refer to PROCEDURE - Step 34

  14. REMOVE ROPE HOOK ASSEMBLY

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 27

  15. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 2

  16. REMOVE RECLINING REMOTE CONTROL BEZEL RH (w/o Rear Power Seat System)

    Refer to PROCEDURE - Step 37

  17. REMOVE FOLD SEAT SWITCH ASSEMBLY (w/ Rear Power Seat System)

    Refer to PROCEDURE - Step 5

  18. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH

    Refer to PROCEDURE - Step 39

  19. REMOVE MULTI-DISPLAY CONTROLLER SUB-ASSEMBLY WITH BRACKET
    1. Disconnect each connector.
      GTY645892Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

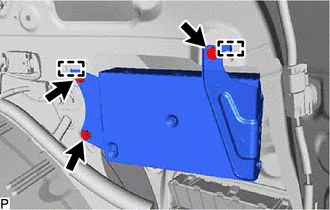

    2. Remove the 3 bolts.
      GTY679863Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 2 guides to remove the multi-display controller sub-assembly with bracket.
  20. REMOVE NO. 2 MULTI-DISPLAY CONTROLLER BRACKET
    1. Remove the 2 screws and No. 2 multi-display controller bracket.
      GTY645890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE NO. 3 MULTI-DISPLAY CONTROLLER BRACKET
    1. Remove the 2 screws and No. 3 multi-display controller bracket.
      GTY645891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE MULTI-DISPLAY CONTROLLER SUB-ASSEMBLY
