Removal [10/2015 - ]: Procedure

  1. REMOVE POWER SEAT SWITCH ASSEMBLY (for 60/40 Split Seat Type RH Side)

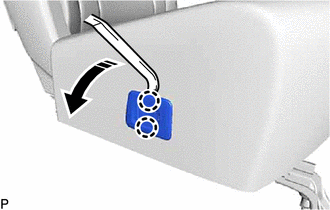

    1. Using a moulding remover A, disengage the 2 claws as shown in the illustration.
      GTY665311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disconnect the connector to remove the power seat switch assembly.
      GTY659751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE REAR POWER SEAT SWITCH RH (for 60/40 Split Seat Type RH Side)
    1. Disengage the 2 claws to remove the rear power seat switch RH as shown in the illustration.
      GTY639083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  3. REMOVE POWER SEAT SWITCH ASSEMBLY (for 60/40 Split Seat Type LH Side)

    HINT:

    Use the same procedure as for the RH side.

  4. REMOVE REAR POWER SEAT SWITCH LH (for 60/40 Split Seat Type LH Side)

    HINT:

    Use the same procedure as for the RH side.

  5. REMOVE FOLD SEAT SWITCH ASSEMBLY (for Luggage Compartment)

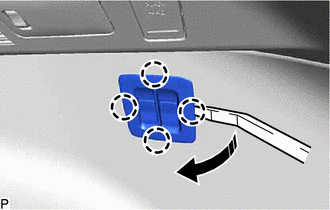

    1. Using a moulding remover A, disengage the 4 claws as shown in the illustration.
      GTY675079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disconnect the connector to remove the fold seat switch assembly.
