Removal [10/2015 - 03/2018]: Procedure

  1. REMOVE FRONT WHEEL OPENING EXTENSION PAD

    HINT:

    Use the same procedure as for the RH side.

    Refer to PROCEDURE - Step 3

  2. DISCONNECT FRONT FENDER MOLDING SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2 [10/2015 - 08/2016] Refer to PROCEDURE - Step 2 [08/2016 - 08/2019]

  3. REMOVE FOG LIGHT ASSEMBLY
    1. Turn the steering wheel fully to the right.

      HINT:

      When removing the fog light assembly RH, turn the steering wheel to the left.

    2. Remove the clip and separate the front fender splash shield sub-assembly.
      GTY628145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

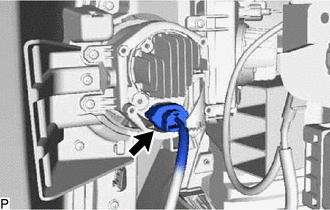

    3. Disconnect the connector.
      GTY656044Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

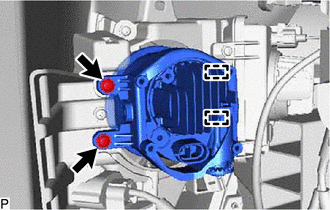

    4. Remove the 2 screws.
      GTY656045Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disengage the 2 guides to remove the fog light assembly.
