Removal [10/2015 - 03/2018]: Procedure

  1. REMOVE FRONT WHEEL RH

    Refer to REMOVAL [10/2015 - ]

  2. REMOVE FRONT FENDER MOLDING SUB-ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to REMOVAL [10/2015 - ]

  3. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH

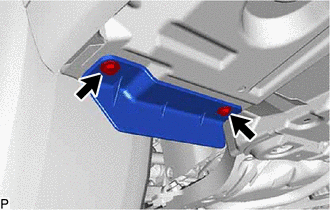

    1. Remove the 2 screws and front wheel opening extension pad RH.
      GTY655278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY RH

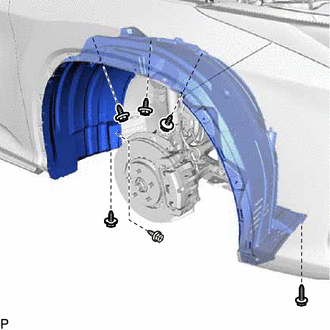

    1. Remove the 6 screws.
      GTY681918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

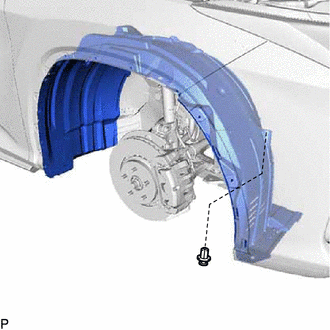

    2. Remove the clip.
      GTY655276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

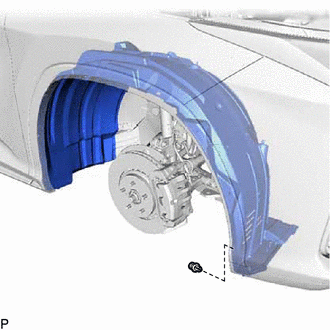

    3. Remove the clip.
      GTY675717Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

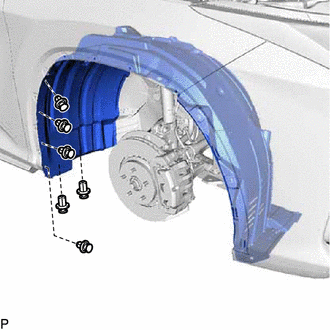

    4. Remove the 6 clips and front fender splash shield sub-assembly RH.
      GTY655272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. DRAIN WASHER FLUID

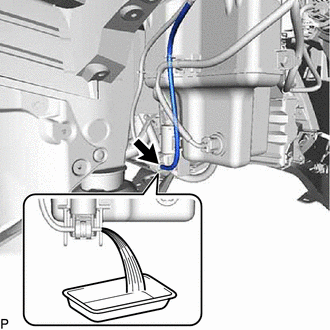

    1. Disconnect the rear washer hose from the washer motor and pump assembly, and drain the washer fluid.
      GTY655273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use a container to collect the washer fluid.

  6. REMOVE WASHER MOTOR AND PUMP ASSEMBLY

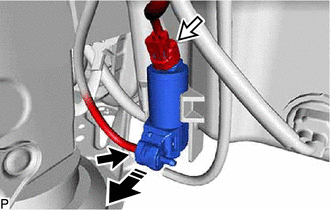

    1. Disconnect the washer hose.
      GTY656034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disconnect the connector.
    3. Remove the washer motor and pump assembly as shown in the illustration.
