Removal [08/2016 - 08/2019]: Procedure
- REMOVE TONNEAU COVER ASSEMBLY
Refer to PROCEDURE - Step 1 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 1 [12/2017 - 08/2019]
- REMOVE DECK BOARD ASSEMBLY
Refer to PROCEDURE - Step 2 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 2 [12/2017 - 08/2019]
- REMOVE REAR NO. 3 FLOOR BOARD
Refer to PROCEDURE - Step 3 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 3 [12/2017 - 08/2019]
- REMOVE REAR DECK FLOOR BOX
Refer to PROCEDURE - Step 4 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 4 [12/2017 - 08/2019]
- REMOVE REAR NO. 4 FLOOR BOARD
Refer to PROCEDURE - Step 5 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 5 [12/2017 - 08/2019]
- REMOVE FRONT DECK FLOOR BOX (for LH Side)
Refer to PROCEDURE - Step 6 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 6 [12/2017 - 08/2019]
- REMOVE DECK SIDE TRIM BOX RH
Refer to PROCEDURE - Step 7 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 7 [12/2017 - 08/2019]
- REMOVE REAR FLOOR FINISH PLATE
Refer to PROCEDURE - Step 8 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 8 [12/2017 - 08/2019]
- REMOVE REAR DOOR SCUFF PLATE LH
Refer to PROCEDURE - Step 11 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 11 [12/2017 - 08/2019]
- REMOVE REAR SEAT ASSEMBLY LH (for LH Side)
Refer to REMOVAL [08/2016 - 08/2019]
- REMOVE REAR SEAT ASSEMBLY RH (for RH Side)
Refer to REMOVAL [08/2016 - 08/2019]
- REMOVE UPPER QUARTER TRIM PAD LH
Refer to PROCEDURE - Step 23 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 23 [12/2017 - 08/2019]
- REMOVE REAR SEAT SIDE GARNISH LH
Refer to PROCEDURE - Step 24 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 24 [12/2017 - 08/2019]
- REMOVE REAR FLOOR FINISH SIDE PLATE LH
Refer to PROCEDURE - Step 25 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 25 [12/2017 - 08/2019]
- REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (for LH Side)
Refer to PROCEDURE - Step 26 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 26 [12/2017 - 08/2019]
- REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (for RH Side)
Refer to PROCEDURE - Step 34 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 34 [12/2017 - 08/2019]
- REMOVE ROPE HOOK ASSEMBLY
Refer to PROCEDURE - Step 27 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 27 [12/2017 - 08/2019]
- REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY (for LH Side)
Refer to PROCEDURE - Step 1 [10/2015 - 03/2018] , or refer to PROCEDURE - Step 1 [03/2018 - 08/2019]
- REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY (for RH Side)
Refer to PROCEDURE - Step 2 [10/2015 - 03/2018] , or refer to PROCEDURE - Step 2 [03/2018 - 08/2019]
- REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH (for LH Side)
Refer to PROCEDURE - Step 29 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 29 [12/2017 - 08/2019]
- REMOVE RECLINING REMOTE CONTROL BEZEL RH (for RH Side)
w/o Rear Power Seat System:
Refer to PROCEDURE - Step 37 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 37 [12/2017 - 08/2019]
- REMOVE FOLD SEAT SWITCH ASSEMBLY (for RH Side)
w/ Rear Power Seat System:
Refer to PROCEDURE - Step 5
- REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH (for RH Side)
Refer to PROCEDURE - Step 39 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 39 [12/2017 - 08/2019]
- REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH
Refer to PROCEDURE - Step 30 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 30 [12/2017 - 08/2019]

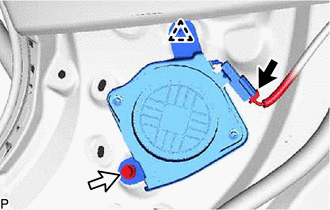

- REMOVE QUARTER SIDE SPEAKER ASSEMBLY NOTE:
Do not touch the speaker cone.
