Removal [09/2015 - ]: Procedure

  1. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 1 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 1 [08/2016 - 08/2019] , or refer to PROCEDURE - Step 1 [08/2019 - ]

  2. REMOVE FRONT FENDER REINFORCEMENT SUB-ASSEMBLY TOP LH

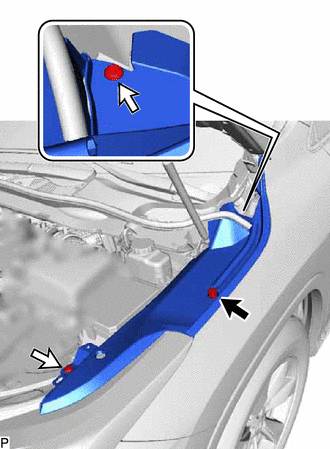

    1. Remove the center hood cushion and 2 clips.
      GTY627786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Center Hood Cushion
      Clip

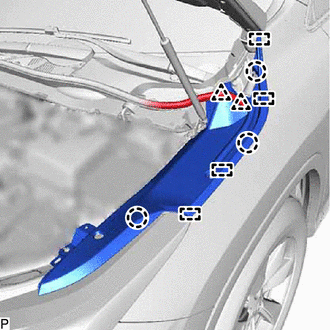

    2. Disengage the 2 clips to disconnect the cowl top ventilator louver sub-assembly.
      GTY653962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 3 claws and 4 guides to remove the front fender reinforcement sub-assembly top LH.
  3. REMOVE FRONT FENDER REINFORCEMENT SUB-ASSEMBLY TOP RH

    HINT:

    Use the same procedure as for the LH side.

  4. REMOVE FRONT WIPER ARM HEAD CAP

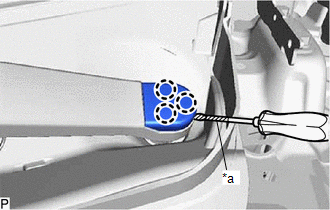

    1. Using a screwdriver, disengage the 3 claws to remove the front wiper arm head cap.
      GTY675348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape

      HINT:

      Tape the screwdriver tip before use.

  5. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH

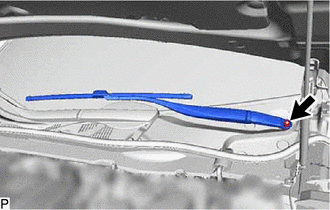

    1. Remove the nut and front wiper arm and blade assembly LH.
      GTY653955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH

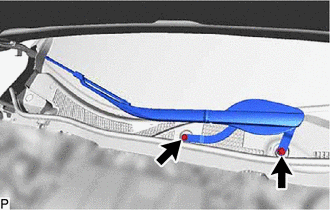

    1. While holding the front wiper arm and blade assembly RH, remove the 2 nuts and front wiper arm and blade assembly RH.
      GTY653951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      As the front wiper arm and blade assembly RH and the surrounding components may be damaged, make sure to hold the front wiper arm and blade assembly RH when removing the 2 nuts.

  7. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

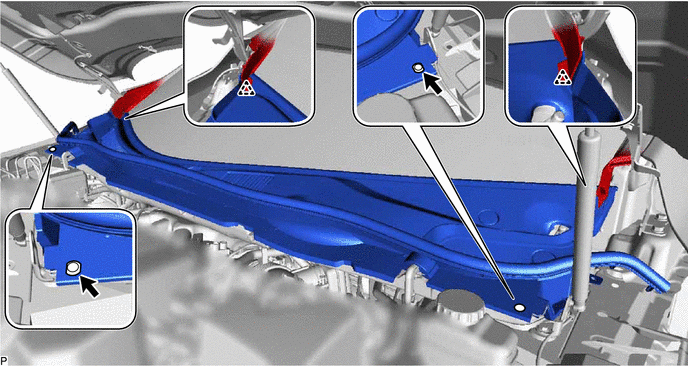

    1. Remove the 2 clips.
      GTY653952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 clips to disconnect the windshield outside moulding LH and windshield outside moulding RH.

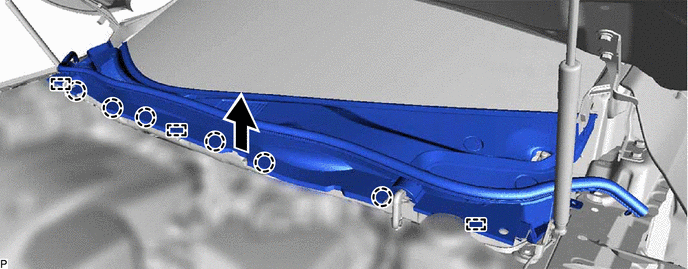

    3. Disengage the 6 claws and 3 guides as shown in the illustration.
      GTY653948Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

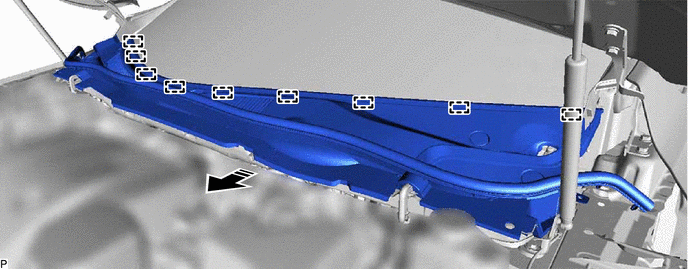

    4. Disengage the 9 guides and remove the cowl top ventilator louver sub-assembly as shown in the illustration.
      GTY668371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  8. REMOVE FRONT WIPER MOTOR AND LINK ASSEMBLY

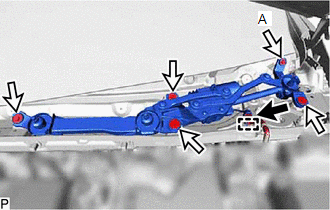

    1. Disconnect the connector.
      GTY654674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.
    3. Remove the 5 bolts and front wiper motor and link assembly.

      HINT:

      Remove the bolt (A) and front wiper motor and link assembly as a set.

  9. REMOVE WIPER MOTOR WIRE

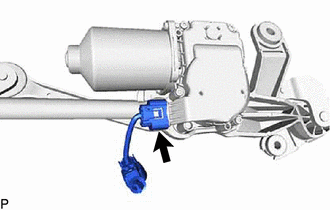

    1. Disconnect the connector to remove the wiper motor wire.
      GTY653938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
