Removal [10/2017 - 09/2018]: Procedure

  1. AIR SUSPENSION CONTROL PROHIBITED (w/ Air Suspension)

    Refer to PRECAUTION [10/2017 - ]

  2. RELEASE PARKING BRAKE

    Refer to PROCEDURE - Step 1

  3. FORCED RELEASE PARKING BRAKE

    Refer to PROCEDURE - Step 2

  4. PRECAUTION
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the auxiliary battery negative (-) terminal. Therefore, make sure to read the disconnecting the cable from the auxiliary battery negative (-) terminal notices before proceeding with work.

    Refer to PRECAUTION [10/2017 - 09/2019]

  5. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 24

  6. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 3

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [10/2017 - 09/2018]

  7. REMOVE REAR WHEEL

    Refer to REMOVAL [10/2017 - 10/2023]

  8. PARKING LOCK FORCED RELEASE

    Refer to PROCEDURE - Step 2

  9. REMOVE ROCKER PANEL MOULDING PROTECTOR LH

    Refer to PROCEDURE - Step 1

  10. REMOVE REAR WHEEL HOUSE LINER LH

    HINT:

    Use the same procedure for the RH and LH sides.

    Refer to PROCEDURE - Step 4

  11. REMOVE LUGGAGE COMPARTMENT FLOOR MAT

    Refer to PROCEDURE - Step 23

  12. REMOVE LUGGAGE COMPARTMENT TRIM COVER LH

    Refer to PROCEDURE - Step 25

  13. REMOVE LUGGAGE COMPARTMENT TRIM COVER RH

    Refer to PROCEDURE - Step 26

  14. REMOVE TOOL BOX

    Refer to PROCEDURE - Step 27

  15. REMOVE INNER LOWER LUGGAGE COMPARTMENT TRIM COVER

    Refer to PROCEDURE - Step 28

  16. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER

    Refer to PROCEDURE - Step 29

  17. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  18. REMOVE REAR LUGGAGE COMPARTMENT TRIM COVER

    Refer to PROCEDURE - Step 31

  19. REMOVE ROPE HOOK ASSEMBLY

    Refer to PROCEDURE - Step 10

  20. REMOVE REAR FLOOR FINISH PLATE

    Refer to PROCEDURE - Step 11

  21. REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY LH

    Refer to PROCEDURE - Step 12

  22. DISCONNECT PARKING BRAKE ACTUATOR ASSEMBLY WITH BRACKET

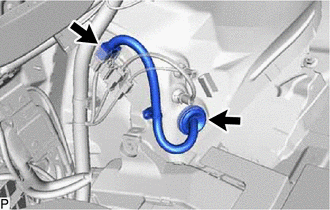

    1. Disconnect the connector.
      GTY807750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the grommet of the electric parking brake actuator harness and pass the connector through the hole to the outside of the vehicle.
    3. Remove the 2 nuts.
      GTY807746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE REAR DIFFERENTIAL CARRIER ASSEMBLY
  24. REMOVE REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH

    Refer to REMOVAL [10/2017 - ]

  25. REMOVE REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  26. REMOVE REAR SUSPENSION MEMBER SUB-ASSEMBLY
    1. Support the rear suspension member sub-assembly with an engine lifter using 4 attachments or equivalent tools as shown in the illustration.
      WARNING:
      • GTY628581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        The rear suspension member sub-assembly is a very heavy component. Make sure that it is supported securely.

      • If the rear suspension member sub-assembly is not securely supported, it may drop, resulting in serious injury.
      NOTE:

      Use attachments to keep the rear suspension member sub-assembly level.

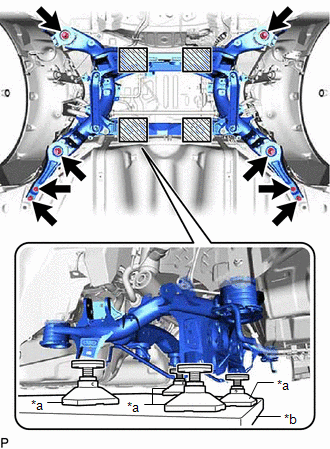

      GTY797202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Attachment
      *b Engine Lifter
      Attachment placement location
    2. Remove the 8 bolts, rear lower suspension member stopper LH, rear lower suspension member stopper RH, rear lower suspension member stopper and rear suspension member sub-assembly.
    3. Slowly lower the rear suspension member sub-assembly.
      NOTE:

      When lowering the rear suspension member sub-assembly, be careful not to damage the vehicle body or other components installed to the vehicle.

  27. REMOVE REAR STABILIZER LINK ASSEMBLY LH

    Refer to PROCEDURE - Step 8

  28. REMOVE REAR STABILIZER LINK ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  29. REMOVE PARKING BRAKE ACTUATOR ASSEMBLY WITH BRACKET

    Refer to PROCEDURE - Step 5

  30. REMOVE REAR STABILIZER BAR

    Refer to PROCEDURE - Step 4

  31. REMOVE REAR NO. 1 DIFFERENTIAL MOUNT CUSHION

    Refer to PROCEDURE - Step 2

  32. REMOVE LOWER CONTROL ARM ASSEMBLY LH
    1. Remove the bolt, nut and lower control arm assembly LH from the rear suspension member sub-assembly.
      GTY803149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut
      NOTE:

      Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.

  33. REMOVE LOWER CONTROL ARM ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  34. REMOVE REAR NO. 2 SUSPENSION ARM ASSEMBLY LH
    1. Remove the nut, rear suspension arm attachment sub-assembly, rear No. 2 suspension toe adjust plate and rear No. 2 suspension arm assembly LH from the rear suspension member sub-assembly.
      GTY833942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. REMOVE REAR NO. 2 SUSPENSION ARM ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  36. REMOVE REAR NO. 1 SUSPENSION ARM ASSEMBLY LH
    1. Remove the bolt, nut, washer and rear No. 1 suspension arm assembly LH from the rear suspension member sub-assembly.
      GTY808931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut
  37. REMOVE REAR NO. 1 SUSPENSION ARM ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  38. REMOVE REAR UPPER CONTROL ARM ASSEMBLY LH
    1. Remove the bolt, nut, washer and rear upper control arm assembly LH from the rear suspension member sub-assembly.
      GTY815967Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut
      NOTE:

      Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.

  39. REMOVE REAR UPPER CONTROL ARM ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  40. REMOVE TOE CONTROL LINK SUB-ASSEMBLY LH (w/o Dynamic Rear Steering)
    1. Place matchmarks on the rear suspension toe adjust cam sub-assembly, rear No. 2 suspension toe adjust plate and rear suspension member sub-assembly.
      GTY776567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark
    2. Remove the nut, rear suspension toe adjust cam sub-assembly, rear No. 2 suspension toe adjust plate and toe control link sub-assembly LH from the rear suspension member sub-assembly.
      GTY805601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  41. REMOVE TOE CONTROL LINK SUB-ASSEMBLY RH (w/o Dynamic Rear Steering)

    HINT:

    Perform the same procedure as for the LH side.

  42. REMOVE NO. 4 EXHAUST PIPE SUPPORT BRACKET
    1. Remove the 2 bolts and No. 4 exhaust pipe support bracket from the rear suspension member sub-assembly.
      GTY805900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  43. REMOVE NO. 5 EXHAUST PIPE SUPPORT BRACKET

    HINT:

    Perform the same procedure as for the No. 4 exhaust pipe support bracket.

  44. REMOVE REAR SUSPENSION MEMBER FRONT UPPER STOPPER
    1. Remove the 2 rear suspension member front upper stoppers from the rear suspension member sub-assembly.
      GTY813355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  45. REMOVE REAR SUSPENSION MEMBER REAR UPPER STOPPER
    1. Remove the 2 rear suspension member rear upper stoppers from the rear suspension member sub-assembly.

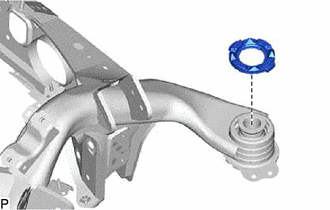

      GTY805891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  46. REMOVE REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION LH
    1. Using a chisel and hammer, bend the rear suspension member front body mounting cushion rib.
      GTY813363Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, remove the rear suspension member front body mounting cushion LH while applying grease into the clearance between the rear suspension member front body mounting cushion LH and the rear suspension member sub-assembly.
      • SST: 09950-40011
        1. 09951-04020
        2. 09952-04010
        3. 09953-04030
        4. 09954-04020
        5. 09957-04010
        6. 09958-04011
      • SST: 09950-60011
        1. 09951-00540
      GTY780807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Apply grease to the threads and tip of the SST center bolt before use.
      • Be careful as the rear suspension member front body mounting cushion LH may fly out.
      • The rear suspension member front body mounting cushion LH cannot be reused.
    3. GTY787548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      If the outer casing of the rear suspension member front body mounting cushion remains, insert SST between the rear suspension member front body mounting cushion and the rear suspension member sub-assembly, and then remove the outer casing. SST

      • SST: 09608-06041
      • SST: 09950-40011
        1. 09951-04020
        2. 09952-04010
        3. 09953-04030
        4. 09954-04020
        5. 09957-04010
        6. 09958-04011
      • SST: 09950-60011
        1. 09951-00540
      • SST: 09950-60021
        1. 09951-00680
  47. REMOVE REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION RH

    HINT:

    Perform the same procedure as for the LH side.

  48. REMOVE REAR SUSPENSION MEMBER REAR BODY MOUNTING CUSHION (for LH Side)
    1. Using SST, remove the rear suspension member rear body mounting cushion while applying grease into the clearance between the rear suspension member rear body mounting cushion and the rear suspension member sub-assembly.
      • SST: 09608-06041
      • SST: 09950-00020
      • SST: 09950-00030
      • SST: 09950-40011
        1. 09957-04010
      • SST: 09950-60011
        1. 09951-00540
      NOTE:
      • Apply grease to the threads and tip of the SST center bolt before use.
      • Be careful as the rear suspension member rear body mounting cushion may fly out.
      • The rear suspension member rear body mounting cushion cannot be reused.

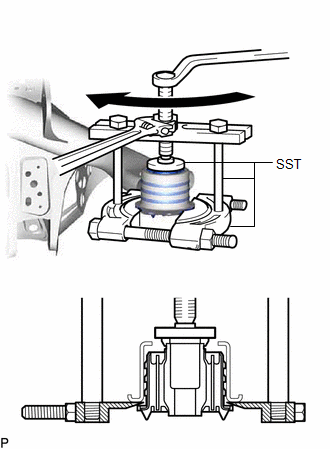

      GTY828833Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. If the outer casing of the rear suspension member rear body mounting cushion remains, insert SST between the rear suspension member rear body mounting cushion and the rear suspension member sub-assembly, and then remove the outer casing. SST
      • SST: 09608-06041
      • SST: 09950-00020
      • SST: 09950-00030
      • SST: 09950-60021
        1. 09951-00680

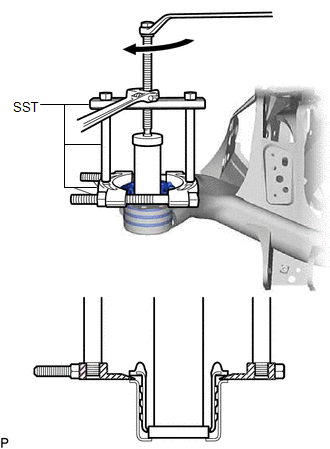

      GTY788795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  49. REMOVE REAR SUSPENSION MEMBER REAR BODY MOUNTING CUSHION (for RH Side)

    HINT:

    Perform the same procedure as for the LH side.
