Removal [10/2017 - ]: Procedure

Refer to REMOVAL [10/2017 - 09/2018] , or refer to REMOVAL [09/2018 - 09/2019] , or refer to REMOVAL [09/2019 - 10/2020] , or refer to REMOVAL [10/2020 - 11/2021] , or refer to REMOVAL [11/2021 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023] , or refer to REMOVAL [10/2023 - ]

See step  10 [10/2017 - 10/2020], or see step  10 [10/2020 - 11/2021], or see step  10 [11/2021 - 10/2022], or see step  10 [10/2022 - 10/2023], or see step  10 [10/2023 - ]

HINT:

Perform the same procedure as for the LH side.

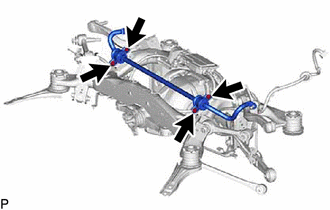

1. Remove the 4 bolts, rear stabilizer bar from the rear suspension member sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the rear No. 1 stabilizer bar bracket LH from the rear stabilizer bushing.

HINT:

Perform the same procedure as for the LH side.

1. Remove the 2 rear stabilizer bushings from the rear stabilizer bar.
