Removal [03/2017 - 05/2023]: Procedure
- REMOVE FRONT DOOR TRIM COVER SUB-ASSEMBLY LH (for Driver Side)
Refer to PROCEDURE - Step 4 [03/2017 - 06/2019] , or refer to PROCEDURE - Step 4 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 4 [04/2020 - 05/2023]
- REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH (for Driver Side)
Refer to PROCEDURE - Step 6 [03/2017 - 06/2019] , or refer to PROCEDURE - Step 6 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 6 [04/2020 - 05/2023]
- REMOVE FRONT DOOR ASSIST GRIP ASSEMBLY RH (for Front Passenger Side)
Refer to PROCEDURE - Step 8 [03/2017 - 06/2019] , or refer to PROCEDURE - Step 8 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 8 [04/2020 - 05/2023]
- REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY RH (for Front Passenger Side)
Refer to PROCEDURE - Step 10 [03/2017 - 06/2019] , or refer to PROCEDURE - Step 10 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 10 [04/2020 - 05/2023]
- REMOVE NO. 1 SPEAKER ASSEMBLY WITH BOX
Refer to PROCEDURE - Step 5
- REMOVE OUTER REAR VIEW MIRROR ASSEMBLY LH

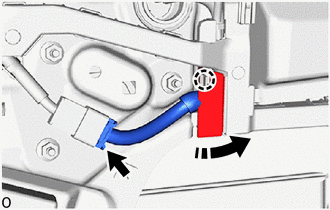

Open Detach the claw and open the wire harness protector.
- Disconnect the connector.

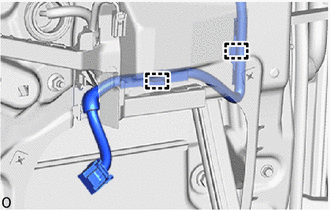

- Detach the clamp.
- Open the front door glass sub-assembly LH fully open position.

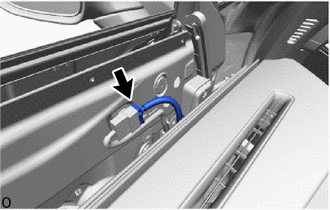

Connect the No. 2 front door wire LH connector.
- Insert the upper portion of the front door trim board sub-assembly LH into the front door panel to temporarily set it.

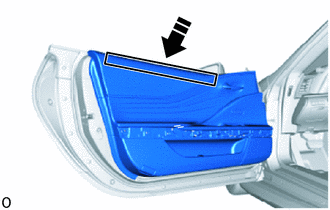

Temporarily Set in this Direction - Turn the engine switch on (IG).
- Operate the multiplex network master switch assembly and set the front door glass sub-assembly LH to the fully open position.
- Turn the engine switch off.
- Disconnect the No. 2 front door wire LH connector.
- Remove the front door trim board sub-assembly LH.

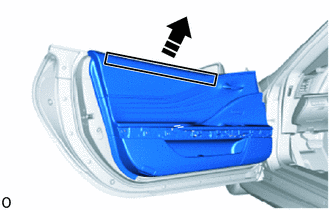

Remove in this Direction

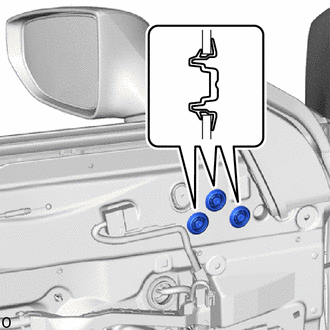

- Remove the 3 hole plugs.

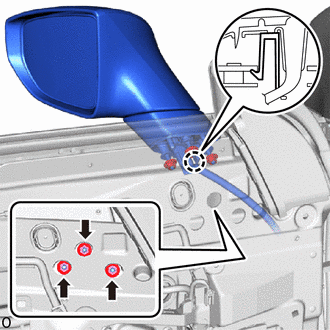

- Remove the 3 nuts.NOTE:
Hold the outer rear view mirror assembly with one hand so that it does not drop.
- Detach the claw and remove the outer rear view mirror assembly LH.
