Removal [03/2017 - ]: Procedure

  1. REMOVE FRONT DOOR TRIM COVER SUB-ASSEMBLY LH (for Driver Side)

    Refer to PROCEDURE - Step 4 [03/2017 - 06/2019] , or refer to PROCEDURE - Step 4 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 4 [04/2020 - 05/2023] , or refer to DISASSEMBLY [05/2023 - ]

  2. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH (for Driver Side)

    Refer to PROCEDURE - Step 6 [03/2017 - 06/2019] , or refer to PROCEDURE - Step 6 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 6 [04/2020 - 05/2023] , or refer to DISASSEMBLY [05/2023 - ]

  3. REMOVE FRONT DOOR ASSIST GRIP ASSEMBLY RH (for Front Passenger Side)

    Refer to PROCEDURE - Step 8 [03/2017 - 06/2019] , or refer to PROCEDURE - Step 8 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 8 [04/2020 - 05/2023] , or refer to DISASSEMBLY [05/2023 - ]

  4. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY RH (for Front Passenger Side)

    Refer to PROCEDURE - Step 10 [03/2017 - 06/2019] , or refer to PROCEDURE - Step 10 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 10 [04/2020 - 05/2023] , or refer to DISASSEMBLY [05/2023 - ]

  5. REMOVE NO. 1 SPEAKER ASSEMBLY WITH BOX
    NOTE:

    Do not touch the cone part of the speaker.

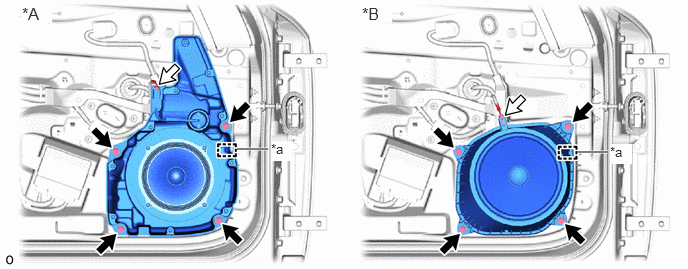

    1. Disconnect the connector.
      GTY830302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for 12 Speakers *B for 13 Speakers
      *a Guide - -
    2. Remove the 4 screws.
    3. Detach the guide and remove the No. 1 speaker assembly with box.
