Removal [07/2015 - ]: Procedure

(Refer to REMOVAL [07/2015 - 08/2016] Refer to REMOVAL [08/2016 - ] )

1. Disconnect each connector from the spiral cable sub-assembly.

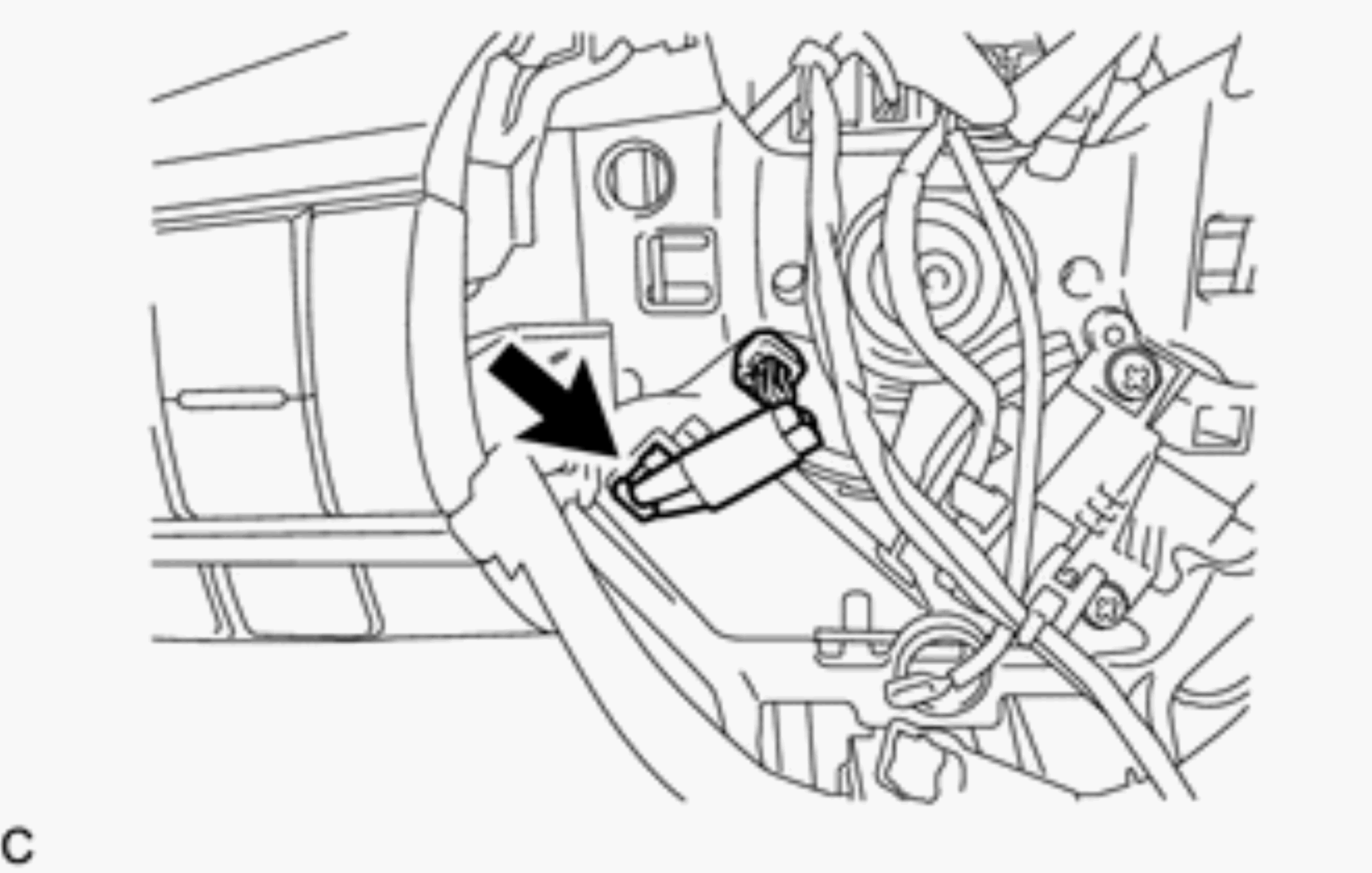

2. w/ Heated Steering Wheel System or Pre-collision System:
   1. Disconnect the connector.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

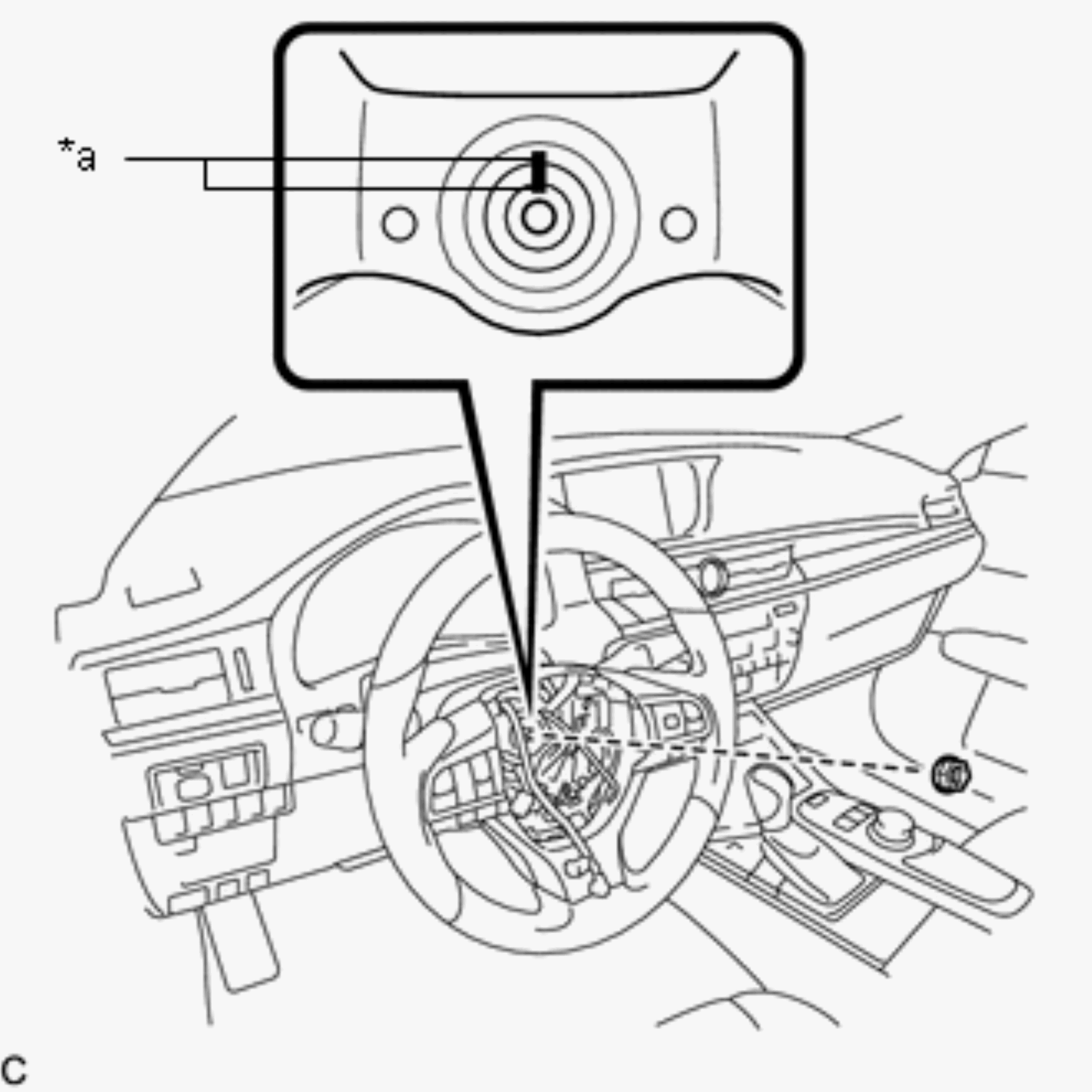

3. Remove the steering wheel assembly set nut.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *a

   Matchmark

4. Put matchmarks on the steering wheel assembly and steering main shaft.

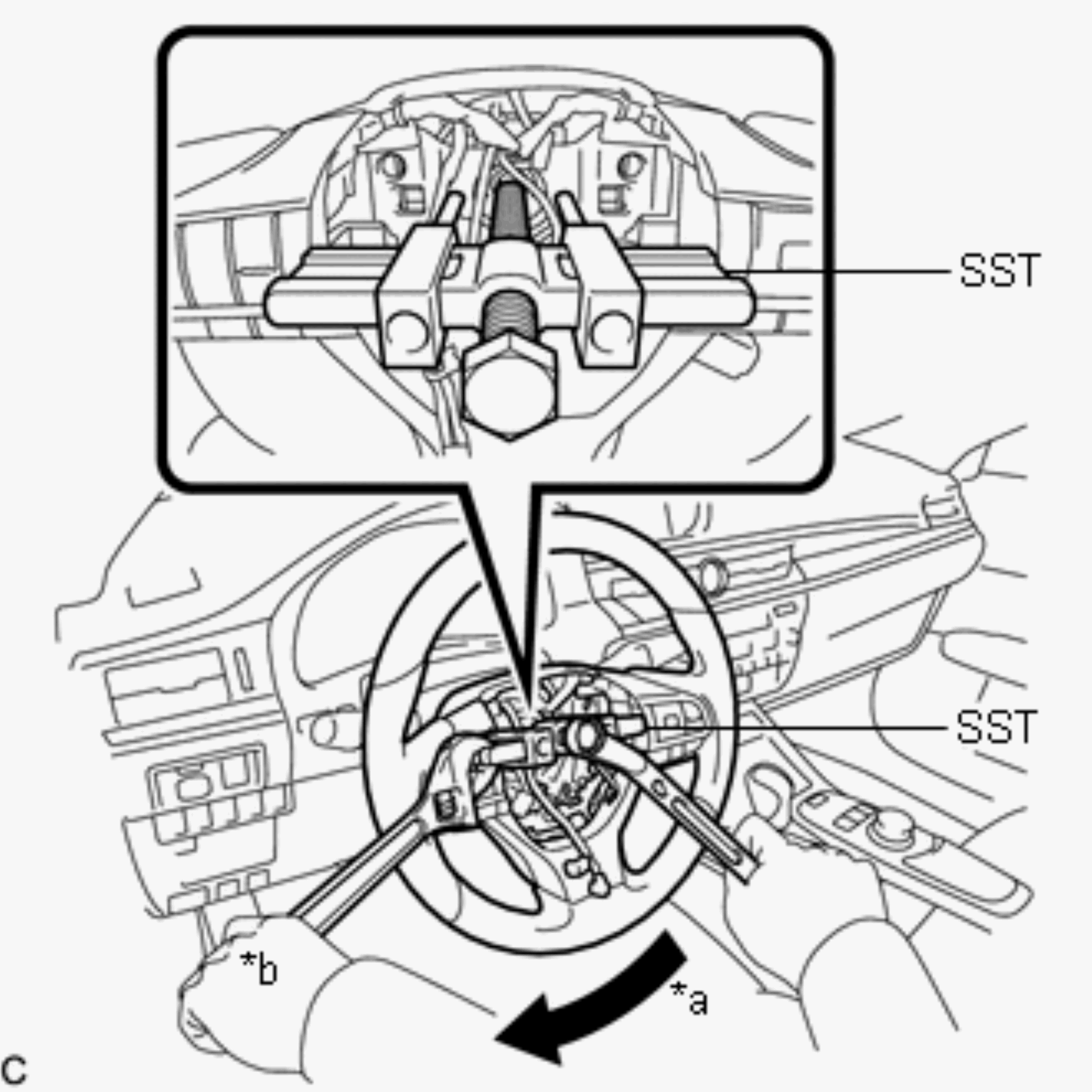

5. Using SST, remove the steering wheel assembly.
   • SST: 09950-50013
     • 09951-05010
     • 09952-05010
     • 09953-05020
     • 09954-05070

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *a	Turn
   *b	Hold

   NOTE:

   Apply a small amount of grease to the threads and tip of SST (09953-05020) before use.

Refer to PROCEDURE - Step 2

See step  3
