Removal [07/2015 - ]: Procedure

  1. REMOVE STEERING PAD

    (Refer to REMOVAL [07/2015 - 08/2016] Refer to REMOVAL [08/2016 - ] )

  2. REMOVE CRUISE CONTROL MAIN SWITCH

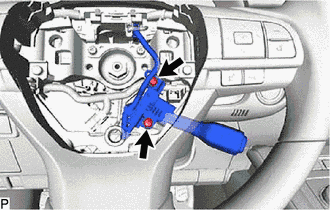

    1. Remove the 2 screws.
      GTY636414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

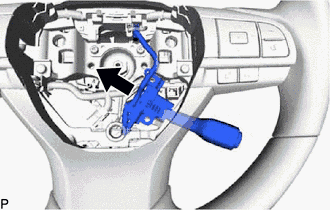

    2. Pull the cruise control main switch as shown in the illustration.
      GTY677763Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

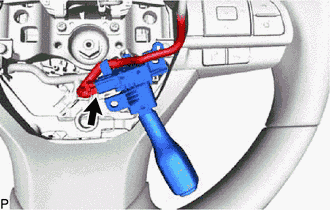

    3. Disconnect the connector and remove the cruise control main switch.
      GTY636412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
