Removal [07/2015 - ]: Procedure

  1. REMOVE FRONT DOOR OPENING TRIM COVER

    Refer to PROCEDURE - Step 6

  2. REMOVE FRONT PILLAR GARNISH

    Refer to PROCEDURE - Step 7

  3. REMOVE INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 39

  4. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY

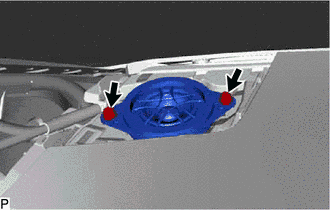

    1. Remove the 2 bolts.
      GTY400998Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Lift the front No. 2 speaker assembly and disconnect the connector to remove it.
      NOTE:

      Do not touch the speaker cone.

      HINT:

      Use the same procedure for the RH side and LH side.

  5. REMOVE NO. 1 SPEAKER OPENING COVER ASSEMBLY

    Refer to PROCEDURE - Step 41

  6. REMOVE FRONT NO. 3 SPEAKER ASSEMBLY

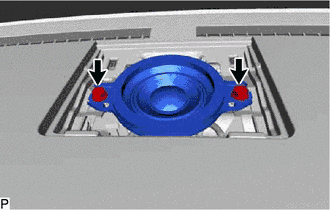

    1. Remove the 2 bolts.
      GTY400999Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Lift the front No. 3 speaker assembly and disconnect the connector to remove it.
      NOTE:

      Do not touch the speaker cone.
