Removal [07/2015 - ]: Procedure

PRECAUTION
NOTE:
After turning the power switch off, waiting time may be required before disconnecting the cable from the auxiliary battery negative (-) terminal. Therefore, make sure to read the disconnecting the cable from the auxiliary battery negative (-) terminal notices before proceeding with work. Refer to PRECAUTION [07/2015 - ]
REMOVE LUGGAGE TRIM SERVICE HOLE COVER
Refer to PROCEDURE - Step 2
DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL (for Manual Tilt and Manual Telescopic Steering Column)
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION [07/2015 - ]
DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL (for Power Tilt and Power Telescopic Steering Column)
1. Disable the auto away/return function by changing the customize parameter. Refer to CUSTOMIZE PARAMETERS [07/2015 - ]
  NOTE:
  Record the current customize parameter setting (whether the auto away/return function is enabled or disabled) in order to restore the current setting after finishing this operation.

  HINT:

  Performing the above operation disables the auto away/return function when the power switch is turned off.
2. Turn the power switch on (IG). Operate the tilt and telescopic switch to fully extend and lower the steering column assembly.
3. Turn the power switch off and disconnect the cable from the auxiliary battery negative (-) terminal.
  NOTE:
  When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION [07/2015 - ]

REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

for Manual Tilt and Manual Telescopic Steering Column:
1. Operate the tilt and telescopic lever to fully extend and lower the steering column assembly.

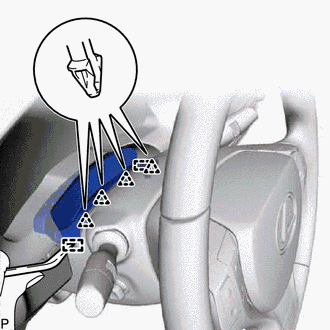

Using a moulding remover, disengage the 4 clips and 2 guides.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

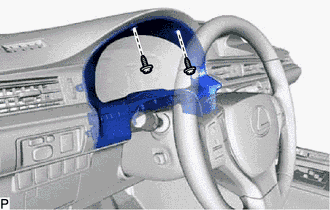

Remove the 2 screws.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

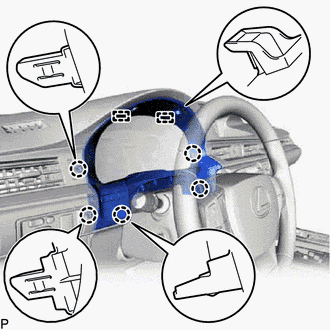

Disengage the 5 claws and 2 guides.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disconnect the connector and remove the instrument cluster finish panel sub-assembly.

REMOVE COMBINATION METER ASSEMBLY

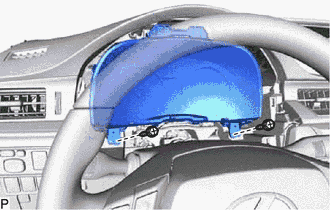

Remove the 2 screws.

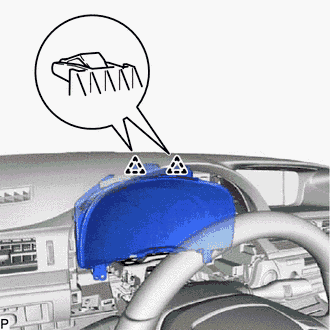

Disengage the 2 clips.

Disconnect the 2 connectors to remove the combination meter assembly.
