Removal [09/2015 - ]: Procedure

  1. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH (for AWD)

    Refer to PROCEDURE - Step 7

  2. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH (for AWD)

    Refer to PROCEDURE - Step 8

  3. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 6

  4. REMOVE ENGINE OIL PRESSURE SWITCH ASSEMBLY
    1. Disconnect the switch connector.

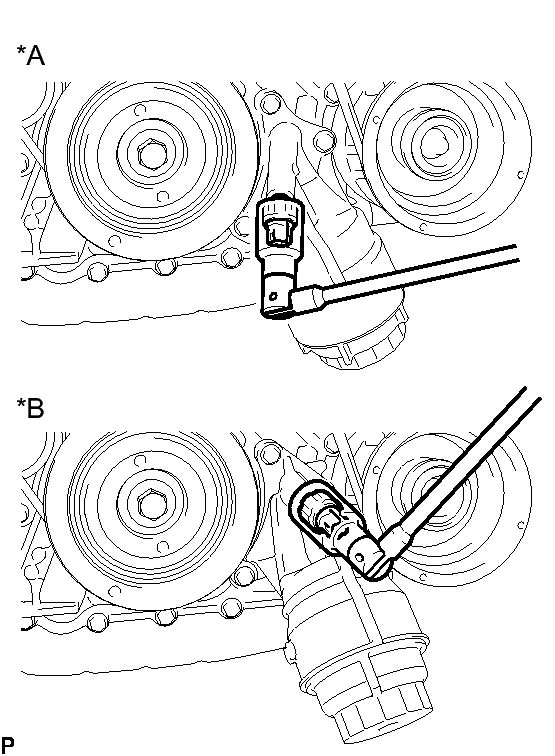

    2. Using a 24 mm deep socket wrench, remove the switch.
      GTY405714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *A for 2WD
      *B for AWD
